⇦Chinese Physics Letters, 2021, Vol. 38, No. 7, Article code 071201Express Letter Resolving the Bethe–Salpeter Kernel Si-Xue Qin (秦思学)1* and Craig D. Roberts2,3* Affiliations 1Department of Physics, Chongqing University, Chongqing 401331, China 2School of Physics, Nanjing University, Nanjing 210093, China 3Institute for Nonperturbative Physics, Nanjing University, Nanjing 210093, China Received 18 May 2021; accepted 25 May 2021; published online 6 June 2021 Supported by the National Natural Science Foundation of China (Grant Nos. 11805024 and 11947406).
*Corresponding authors. Email: sqin@cqu.edu.cn; cdroberts@nju.edu.cn Citation Text: Qin S X and D. Roberts C 2021 Chin. Phys. Lett. 38 071201    Abstract A novel method for constructing a kernel for the meson bound-state problem is described. It produces a closed form that is symmetry-consistent (discrete and continuous) with the gap equation defined by any admissible gluon-quark vertex, $\varGamma$. Applicable even when the diagrammatic content of $\varGamma$ is unknown, the scheme can foster new synergies between continuum and lattice approaches to strong interactions. The framework is illustrated by showing that the presence of a dressed-quark anomalous magnetic moment in $\varGamma$, an emergent feature of strong interactions, can remedy many defects of widely used meson bound-state kernels, including the mass splittings between vector and axial-vector mesons and the level ordering of pseudoscalar and vector meson radial excitations. DOI:10.1088/0256-307X/38/7/071201 © 2021 Chinese Physics Society Article Text Spectroscopy has long been crucial in searching for an understanding of Nature's fundamental forces. The strong interaction spectrum began to demand attention following discovery of $\pi$-mesons.[1–3] In quantum mechanics models,[4–6] these pions are bound states of a constituent-quark, $Q$, and constituent-antiquark, $\bar Q$, with two-body angular momentum $L=0$, antialigned spins ($S=0$), and principal quantum number $n=1$ (radial ground state): they are $1\,^1\!S_0$ states. The $\pi$-mesons' spin-flip excitations, the $1\,^3\!S_1$ $\rho$-mesons, were discovered a decade later;[7] then the orbital excitations ($1\,^1\!P_1$ $b_1$-mesons);[8] and the orbital excitations of the $\rho$-mesons ($1\,^3\!P_1$ $a_1$-mesons).[9,10] A $1\,^3\!P_0$ companion, the $\sigma$-meson, wherein the $Q\bar Q$ pair possesses $L=1$, $S=1$, $J=L+S=0$, was long controversial;[11] but a picture of a broad scalar resonance has recently become accepted.[12] Plainly, it is not spectroscopy unless the $n=2$ excitations of these states are located. Candidates for the $2\,^1\!S_0$, $2\,^3\!S_1$ and $2\,^3\!P_1$ states have been identified; but the $2\,^1\!P_1$ state is missing and the complexity of the $1\,^3\!P_0$ resonance suggests that it will be difficult to identify and understand a $2\,^3\!P_0$ state. There are gaps at $n=3$; and little is known about $n\geq 4$ mesons.[13] Theoretical frameworks must be developed and employed, which can translate this sparse empirical information into statements about quantum chromodynamics (QCD). In particular, one must expose the character of emergent phenomena in QCD which lead to the existence of mesons, explain their nature, and produce the ordering observed in the spectrum.[14,15] Chiral symmetry is dynamically broken in QCD. Pions emerge as the associated Nambu–Goldstone bosons.[16,17] Dynamical chiral symmetry breaking (DCSB) is a pivotal corollary of emergent hadronic mass (EHM).[18–20] It is characterized by a momentum-dependent quark mass-function,[21–24] which is large at infrared scales, even when the Higgs coupling to light-quarks vanishes, and key to understanding $>98$% of visible mass in the Universe. An insightful spectrum calculation should elucidate consequences of this aspect of EHM. Symmetry Constraints on the Scattering Kernel. The properties of any color-singlet system constituted from a valence quark and a valence antiquark can be determined from a Poincaré-covariant Bethe–Salpeter equation (BSE).[25–31] Its inhomogeneous form may be written $$ \varGamma^H_{\alpha\beta}(k,P)= g^H_{\alpha\beta} + \int_{dq} K^{(2)}_{\alpha\alpha',\beta'\beta} \chi^H_{\alpha'\beta'}(q,P),~~ \tag {1} $$ where $P$ is the total momentum of the quark+antiquark system; the Bethe–Salpeter wave function is $\chi^H(q,P) = S(q_+) \varGamma^H(q,P) S(q_-)$, with $S(q)$ being the dressed-quark propagator, $q_+ = q+\eta P$, $q_- = q - (1-\eta)P$; $g^H$ is a combination of Dirac matrices chosen to specify the $J^{\rm PC}$ channel; $K^{(2)}$ is the two-particle irreducible quark-antiquark scattering kernel, which carries Dirac indices for each of the four fermion legs; and $\int_{dq}$ denotes a four-dimensional Euclidean integral. Herein we consider two flavors of degenerate light quarks, and suppress all renormalization constants and color indices for notational simplicity. The dressed-quark propagator in Eq. (1) can be computed using the gap equation ($l=k-q$): $$\begin{alignat}{1} S^{-1}(k) &= i\gamma\cdot k + m + \varSigma(k) ,~~ \tag {2a}\\ \varSigma(k) & =\int_{dq} 4 \pi \alpha\, D_{\mu\nu}(l)\gamma_\mu S(q) \varGamma_\nu(q,k),~~ \tag {2b} \end{alignat} $$ where $m$ is the Higgs-produced quark current-mass; $\alpha$ is the QCD coupling; $D_{\mu\nu}$ is the dressed-gluon propagator; and $\varGamma_\nu$ is the dressed-gluon-quark vertex. The solution of Eq. (2a) is typically written as $S(k) = 1/[i\gamma\cdot k\,A(k^2) + B(k^2)]$. The keys to delivering realistic predictions for the meson spectrum lie in beginning with a gap equation kernel that expresses DCSB and therefrom constructing a Bethe–Salpeter kernel which ensures all symmetry constraints germane to the spectrum are preserved.[32–36] With this goal in mind, consider $K^{(2)}$. Since this kernel carries four Dirac indices and connects two incoming fermion lines to two outgoing lines, it can be expressed as the sum of tensor products of two $4\times4$ Dirac matrices: $$\begin{align} {K}^{(2)}(q_\pm,k_\pm) & = \sum_n K_{L\,\alpha\alpha^\prime} ^{(n)}(q_\pm,k_\pm) K_{R\,\beta^\prime\beta}^{(n)}(q_\pm,k_\pm)~~ \tag {3a}\\ & =: \sum_n K_L^{(n)}(q_\pm,k_\pm) \otimes K_R^{(n)}(q_\pm,k_\pm).~~ \tag {3b} \end{align} $$ Each $K^{(n)}_{L/R}$ depends on four fermion momenta, only three of which are independent (momentum conservation). Equation (3a) is general; and with ${K}^{(2)}$ written in this form, it is not necessary that any element $K^{(n)}_{L/R}$ be computable as the sum of a series of diagrams. For any bound state, $g^H$ in Eq. (1) specifies the $J^{\rm PC}$ quantum numbers. ${K}^{(2)}$ is thus even under parity operations, forbidding the following structures in Eq. (3a): $$ {\mathbf 1} \otimes \gamma_5,~ \gamma_\mu \otimes \gamma_5\gamma_\mu ,~{\rm etc.}~~ \tag {4} $$ Moreover, ${K}^{(2)}$ is $\mathsf{C}$-parity even, i.e., with $C$ the charge conjugation matrix, the following identity is required: $$\begin{alignat}{1} {K}^{(2)}(q_\pm,k_\pm) & = \sum_n {C} [K_R^{(n)}(-k_\mp,-q_\mp)]^{\rm T}{C}^† \\ & \qquad \otimes {C}[K_L^{(n)}(-k_\mp,-q_\mp)]^{\rm T}{C}^†.~~~~~ \tag {5} \end{alignat} $$ Finally, since all constructions should respect the connection to a Poincaré-invariant local quantum field theory, the $\mathsf{CPT}$ theorem entails that ${K}^{(2)}$ is $\mathsf{T}$-even. [N.B. Crossed channels are readily treated. One merely begins with an appropriately modified form for $g^H$ in Eq. (1).] QCD also has many continuous symmetries, prominent amongst which are those expressed in the vector and axial-vector Ward–Green–Takahashi (WGT) identities,[37,38] written compactly here using $\varDelta^\pm_F(k)=F(k_-)-F(k_+)$ and $\varDelta^\pm_{_{\scriptstyle F5}}(k)=F(k_+)\gamma_5 + \gamma_5 F(k_-)$: $$\begin{alignat}{1} P_\mu \chi_{\mu}(k,P) &= i\varDelta_S^\pm(k) ,~~ \tag {6a}\\ P_\mu \chi_{5\mu}(k,P) &= \varDelta_{S5}^\pm(k) - 2im \chi_{5}(k,P) .~~ \tag {6b} \end{alignat} $$ Now using the associated BSEs, defined by $g^H=i\gamma_\mu$, $\gamma_5\gamma_\mu$, and Eqs. (2a) and (6a) entail $$\begin{align} \varSigma(k_+) - \varSigma(k_-) & = \sum_n\int_{dq} K_L^{(n)} \varDelta^\pm_S(q) K_R^{(n)},~~ \tag {7a}\\ \varSigma(k_+)\gamma_5 + \gamma_5 \varSigma(k_-) & = \sum_n\int_{dq} K_L^{(n)} \varDelta^\pm_{_{\scriptstyle S5}}(q) K_R^{(n)}.~~ \tag {7b} \end{align} $$ In order to resolve Eqs. (7a), we first decompose $$ \varSigma(k) = \varSigma_A(k) + \varSigma_B(k),~ S(k) = \sigma_A(k) + \sigma_B(k),~~ \tag {8} $$ where $\{(\varSigma_A,\sigma_A),\gamma_5\}=0$, $[(\varSigma_B,\sigma_B),\gamma_5]=0$. Next turning to the Bethe–Salpeter kernel, we write $$\begin{alignat}{1} {K}^{(2)} & = \left[ K_{L0}^{(+)} \otimes K_{R0}^{(-)} \right] + \left[ K_{L0}^{(-)} \otimes K_{R0}^{(+)} \right] \\ & + \left[ K_{L1}^{(-)} \otimes_+ K_{R1}^{(-)} \right] + \left[ K_{L1}^{(+)} \otimes_+ K_{R1}^{(+)} \right] \\ & + \left[ K_{L2}^{(-)} \otimes_- K_{R2}^{(-)} \right] + \left[ K_{L2}^{(+)} \otimes_- K_{R2}^{(+)} \right],~~~~~ \tag {9} \end{alignat} $$ where $\gamma_5 K^{(\pm)}\gamma_5 = \pm K^{(\pm)}$ and $\otimes_\pm := \tfrac{1}{2}(\otimes \pm \gamma_5 \otimes \gamma_5)$. Using Eqs. (8) and (9), Eq. (7a) becomes $$\begin{align} \varSigma_A&(k_-) - \varSigma_A(k_+) = \int_{dq} \Big[ - K_{L0}^{(-)} \sigma_B(q_-) K_{R0}^{(+)} \\ &+ K_{L0}^{(+)} \sigma_B(q_+) K_{R0}^{(-)} - K_{L2}^{(-)} \varDelta_{\sigma_A}^\pm(q) K_{R2}^{(-)} \Big],~~ \tag {10a}\\ \varSigma_B&(k_-) = \int_{dq}\Big[- K_{L1}^{(-)} \sigma_B(q_-) K_{R1}^{(-)} \\ &+ K_{L1}^{(+)} \sigma_B(q_+) K_{R1}^{(+)} - K_{L0}^{(-)} \varDelta_{\sigma_A}^\pm(q) K_{R0}^{(+)} \Big] ,~~ \tag {10b}\\ 0 & = \int_{dq} \Big[- K_{L0}^{(-)} \sigma_B(q_+) K_{R0}^{(+)} \\ &+ K_{L0}^{(+)} \sigma_B(q_-) K_{R0}^{(-)} + K_{L2}^{(+)} \varDelta_{\sigma_A}^\pm(q) K_{R2}^{(+)} \Big] .~~ \tag {10c} \end{align} $$ We stress that Eqs. (10a) are simply a decoupled re-expression of the original WGT identities, Eq. (6a): no approximation/truncation has been made. [The path from Eqs. (7a)–(10a) is detailed in the Supplemental Material.] Resolving the Two-Body Scattering Kernel: Functional Illustration. As found when attempting to determine a three-point function from WGT or Slavnov–Taylor identities,[37–43] there is no unique solution of the constraint equations (4), (5), and (10a). Nevertheless, with a gap equation in hand, one can construct a minimal solution for ${K}^{(2)}$ that communicates any emergent features contained in the gap equation kernel to meson properties. We illustrate this using a gap equation built upon Refs. [44–46]. Consider Eq. (2a) and set $4 \pi \alpha D_{\mu\nu}(l) \varGamma_\nu(q,k) \to {\mathcal G}_{\mu\nu}(l)\varGamma_\nu(q,k)$, where ${\mathcal G}_{\mu\nu}$ is a vector-boson exchange-interaction and $\varGamma_\nu$ is a gluon-quark vertex. A modern form of ${\mathcal G}_{\mu\nu}(l)$ is explained in Refs. [46,47], ${\mathcal G}_{\mu\nu}(l) = \tilde{\mathcal I}(l^2) T_{\mu\nu}(l)$, with $l^2 T_{\mu\nu}(l) = l^2 \delta_{\mu\nu} - l_\mu l_\nu$ and ($u=l^2$) $$\begin{alignat}{1} \tilde{\mathcal I}(u) & = \frac{8\pi^2 D}{\omega^4} e^{-u/\omega^2} + \frac{8\pi^2 \gamma_m \mathcal{F}(u)}{\ln\big[ \tau+(1+u/\varLambda_{\rm QCD}^2)^2 \big]},~~~~~~ \tag {11} \end{alignat} $$ where $\gamma_m=4/\beta_0$, $\beta_0=25/3$, $\varLambda_{\rm QCD}=0.234$ GeV, $\ln(\tau+1)=2$, and ${\cal F}(u) = \{1 - \exp(-u/[4 m_t^2])\}/u$, $m_t=0.5$ GeV. Regarding Eq. (11): (i) $0 < \tilde{\mathcal I}(0) < \infty$ because a nonzero gluon mass-scale appears as a consequence of EHM in QCD;[47–50] and (ii) the large-$u=l^2$ behavior ensures that the one-loop renormalization group flow of QCD is preserved. Quality (ii) is important when considering, e.g., hadron elastic and transition form factors at large momentum transfer[51,52] and the character of parton distribution functions and amplitudes in the neighborhood of the endpoints of their support domains.[52–55] However, it plays a far lesser role in the calculation of masses, which are global, integrated properties. For masses, (i) is crucial: even a judiciously formulated momentum-independent interaction can deliver good results.[56] Hence, we follow Refs. [32,45] and hereafter retain only the first term on the right-hand side of Eq. (11). This simplifies the analysis by obviating renormalization without materially affecting the results. The remaining element is $\varGamma_\nu$. In the widely used rainbow-ladder (RL) truncation, $\varGamma_\nu(q,k) = \gamma_\nu$.[57,58] For reasons that are understood,[32–36] this Ansatz is a good approximation for those bound states in which orbital angular momentum does not play a significant role and the non-Abelian anomaly can be ignored. However, it fails for all other systems; its key weakness being omission of those structures which become large as a consequence of EHM. Such terms typically commute with $\gamma_5$. The dressed-gluon-quark vertex has twelve independent structures. In principle, all could be important; but in practice, only five play a material role in the expression of EHM.[59] Amongst those, the dressed-quark anomalous chromomagnetic moment (ACM) is most important:[34,45,60,61] without DCSB, this term vanishes in the chiral limit. Hence, to illustrate our approach, we use $$ \varGamma_\nu(q,k) = \gamma_\nu + \tau_\nu(l=k-q),~ \tau_\nu(l) = \sigma_{l\nu} \kappa(l^2),~~ \tag {12} $$ $\sigma_{l\nu} = \sigma_{\rho\nu} l_\rho$, $\kappa(l^2) = (\eta/\omega)\exp{(-l^2/\omega^2)}$; $\kappa(l^2)$ is power-law suppressed in QCD; but the Gaussian form, matching the infrared-dominant term in Eq. (11), is sufficient for illustrative purposes. In using Eq. (12), following RL truncation convention, any overall dressing factor $F_1$, as in $F_1(l^2)[\gamma_\nu + \tau_\nu(l)]$, is implicitly absorbed into $\tilde{\mathcal I}(l^2)$. Returning to the gap equation, Eq. (2a), and introducing the ACM-improved vertex, one can write $$\begin{alignat}{1} \varSigma_{A,B}(k_\pm) &= \int_{dq} \mathcal{G}_{\mu\nu}(l) \\ & \times \gamma_\mu \left[\sigma_{_{\scriptstyle A,B}}(q_\pm) \gamma_\nu + \sigma_{_{\scriptstyle B,A}}(q_\pm) \tau_\nu(l) \right] .~~~~~ \tag {13} \end{alignat} $$ Using these expressions in Eq. (10a), one obtains $$\begin{align} {K}^{(2)} &= - \mathcal{G}_{\mu\nu}(l)\gamma_\mu\otimes\gamma_\nu - \mathcal{G}_{\mu\nu}(l)\gamma_\mu \otimes \tau_\nu(l) \\ & + ~ \mathcal{G}_{\mu\nu}(l) \tau_\nu(l) \otimes \gamma_\mu + {K}_{\rm ad} .~~ \tag {14} \end{align} $$ ${K}_{\rm ad}$ is unconstrained by Eq. (10a). According to Eq. (9), it only involves $K^{(\mp)}_{L1/R1}$, $K^{(+)}_{L2/R2}$. To construct a minimal symmetry-consistent kernel, we choose the simplest allowable basis for ${K}_{\rm ad}$. Given Eqs. (12), this means $$\begin{alignat}{1} {K}_{\rm ad} &= [ {\boldsymbol 1} \otimes_+ {\boldsymbol 1} ] f^{(+)}_{p0} + [ -\mathcal{G}_{\mu\nu}(l)\gamma_\mu \otimes_+ \gamma_\nu ] f^{(-)}_{p1} \\ & + [ {\boldsymbol 1} \otimes_- {\boldsymbol 1} ] f^{(+)}_{n0} + [ -\mathcal{G}_{\mu\nu}(l)\sigma_{l\mu} \otimes_- \sigma_{l\nu} ] f^{(+)}_{n1},~~~~~~ \tag {15} \end{alignat} $$ where $f=f(l^2;P^2)\in \mathbb{R}$ for $\{l^2,P^2\}\in \mathbb{R}$. Inserting Eq. (15) into Eqs. (10b) and (10c), one obtains $$\begin{alignat}{1} &\int_{dq} \mathcal{G}_{\mu\nu}(l)\gamma_\mu \sigma_A(q_+) \tau_\nu(l) \\ &=\int_{dq} \left[ \sigma_B(q_+) f^{(+)}_{p0} + \mathcal{G}_{\mu\nu}(l)\gamma_\mu \sigma_B(q_-) \gamma_\nu f^{(-)}_{p1} \right],~~~~~~ \tag {16a}\\ &\int_{dq} \mathcal{G}_{\mu\nu}(l)\gamma_\mu \sigma_B(q_+) \tau_\nu(l) \\ &= \int_{dq}\left[\sigma_A(q_+) f^{(+)}_{n0} - \mathcal{G}_{\mu\nu}(l)\sigma_{l\mu} \sigma_A(q_+) \sigma_{l\nu} f^{(+)}_{n1} \right]. ~~~~~~~ \tag {16b} \end{alignat} $$ This pair of complex-valued integral equations gives four real-valued equations that can be solved for the scalar functions which complete $K_{\rm ad}$ and hence $K^{(2)}$ (see the Supplemental Material for exemplifying solutions). For an arbitrary vertex in the family specified by Eqs. (12), we have now arrived at a Bethe–Salpeter kernel that satisfies all necessary and associated discrete and continuous spectrum-generating symmetries. Impacts of an ACM on the Meson Spectrum. The gap equation's kernel is specified by three parameters: interaction strength, $D$, and range, $\omega$; and ACM strength, $\eta$. We fix $\omega = 0.8$ GeV, the value associated with an interaction that matches results from analyses of QCD's gauge sector.[47,49] On the other hand, we use $D$ and $\eta$ to highlight the impact of corrections to RL truncation. First, to establish natural scales, we note that with $D=D_{\rm RL}=(1.105\,{\rm GeV})^2$, $\eta=0$, i.e., in RL truncation, and with $m=3$ MeV, the coupled gap and Bethe–Salpeter equations yield $m_\pi =0.14$ GeV and, using the standard expression,[62] $f_\pi=0.095$ GeV. Both values compare well with empirical results.[13] Increasing $\eta$ adds DCSB strength to the gap equation's kernel; hence, $D$ must be decreased to maintain the same level of DCSB. The pairing $D=(0.92\,{\rm GeV})^2$, $\eta=2/5$ yields $f_\pi=0.095$ GeV, $m_\pi=0.14$ GeV at $m=3$ MeV. It is readily confirmed numerically that our kernel construction preserves both the Gell–Mann–Oakes–Renner relation for meson masses[62,63] and the quark-level Goldberger–Treiman relation,[38,62] both of which are salient corollaries of DCSB (see the Supplemental Material).

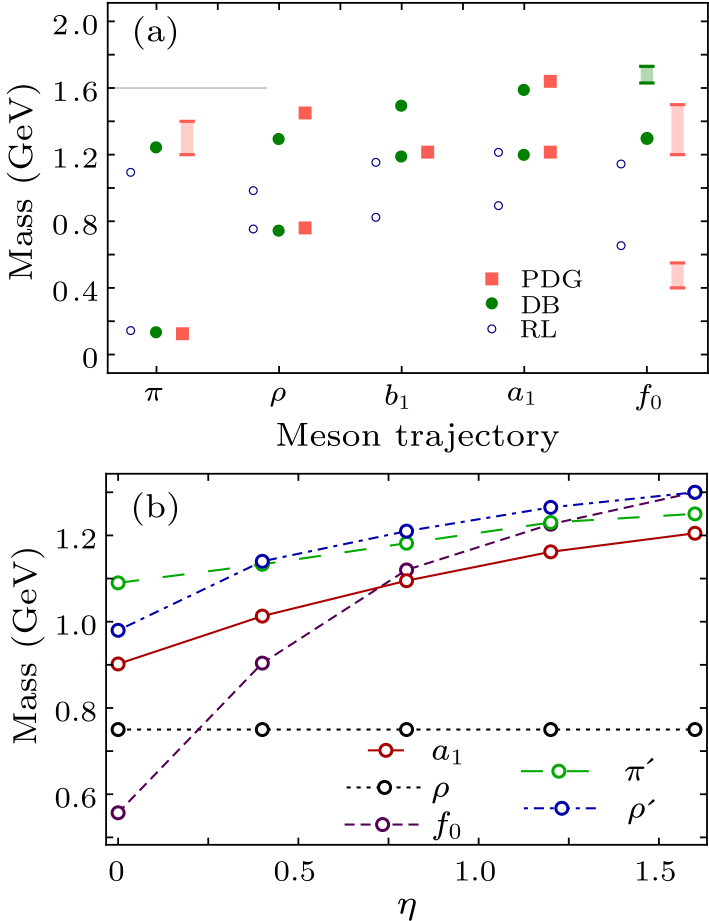

Fig. 1. (a) Meson spectrum computed in RL truncation, $D=(1.10\,{\rm GeV})^2$; and using the ACM-corrected dressed-gluon-quark vertex and Bethe–Salpeter kernel (DB, meaning DCSB-improved), $D=(0.72\,{\rm GeV})^2$, $\eta=1.6$. For comparison, empirical results[13] are also shown, indicated as PDG. Where bands are drawn, they indicate the quoted mass range. (b) $\eta$-dependence of selected meson masses, using Eq. (17). In both panels, masses calculated with $m=3$ MeV.
We now display the impact of the dressed-quark ACM in Eqs. (12) on the meson spectrum (the standard BSE solution method is recapitulated in the Supplemental Material). First note the computed RL ($\eta=0$) spectrum, represented by the open blue circles in Fig. 1(a). As shown by the comparison with empirical values (PDG[13]), the RL masses are too light in almost all cases except the ground-state ($n=1$) $\pi$-and $\rho$-mesons. The exception is the $f_0$ channel, which is a special case, discussed further below. All mismatches have long been understood as a systematic flaw of the RL truncation.[64–68] Namely, by preserving the vector and axial-vector WGT identities, destructive interferences are ensured between RL correction terms in the ground-state flavor-nonsinglet-pseudoscalar- and vector-channels. In all other channels the cancelation between corrections is less effective and/or some of the interference between terms is constructive, i.e., corrections amplify pieces of the Bethe–Salpeter kernel that are too weak in RL truncation. Next, we employ the kernel construction procedure to trace changes in the meson spectrum generated by the ACM term in the gluon-quark vertex. As $\eta$ is increased from zero, we reduce $D$ so as to keep the $\rho$-meson ground-state mass fixed at $0.75$ GeV with $m=3$ MeV: $$ D(\eta) = \frac{D_{\rm RL} (1+0.290 \eta)}{1+1.522 \eta}.~~ \tag {17} $$ The $\eta$-dependence of selected meson masses is depicted in Fig. 1(b). As found previously with ground-state light-quark mesons,[34] the EHM-induced ACM term produces considerable improvements over RL truncation. The following outcomes are worth highlighting. (i) With increasing $\eta$, the $a_1-\rho$ mass splitting rises rapidly from the RL result, which is just $1/3$ of the measured value. The empirical value, $m_{a_1}-m_\rho\approx 0.45$ GeV, is reproduced at $\eta=1.6$ (this is the natural size[45,59]). Given that current-algebra and related models also only produce $2/3$ of the empirical splitting,[69] this is a significant dynamical outcome with important implications for understanding the meson spectrum. For instance, in quantum field theory, one sees the effect as a splitting between parity partners being driven wider by inclusion of additional aspects of DCSB in the gluon-quark coupling. Alternatively, from a quark model perspective, which sees the $a_1$ as an $L=1$ quark+antiquark system, it is natural to expect that DCSB-enhanced constituent magnetic moments would increase spin-orbit repulsion, driving the $a_1$ away from the $\rho(L=0)$. (ii) The computed mass of the $f_0$ system increases quickly with $\eta$, reaching a value of $\approx 1.3$ GeV at $\eta=1.6$. The kernels discussed herein produce a hadron's dressed-quark core. They do not include the resonant contributions which would typically be associated with a meson cloud. This is important because the lightest scalar meson is now considered to be a complicated system with a material $\pi^+\pi^-$ component (section 62 in Ref. [13]). Hence, the quark-core mass of the $f_0$ must be greater than the empirical value because inclusion of resonant contributions to the kernels of the gap and Bethe–Salpeter equations generates additional attraction and a large $f_0\to \pi\pi$ decay width.[70–72] It is thus notable that the ACM-improved vertex result $m_{f_0} \approx 1.3$ GeV matches an estimate of the mass of the $q\bar q$-core component of the $f_0$ obtained using unitarised chiral perturbation theory.[73] (iii) In RL truncation, the radial excitations of the $\pi$-and $\rho$-mesons are too light and, with $m_{\pi^\prime}-m_{\rho^\prime}\gtrsim 100$ MeV, ordered incorrectly. Figure 1(b) shows that both defects can be corrected by including an ACM in the kernels of the gap and Bethe–Salpeter equations. In fact, at the same value of $\eta=1.6$ that reproduces the empirical value of $m_{a_1}-m_\rho$, $m_{\rho^\prime}-m_{\pi^\prime} \approx 50$ MeV, commensurate with the empirical value $170(100)$ MeV. Given the experimental uncertainty in the $\pi(1300)$ mass, one might doubt that nature prefers $m_\rho^\prime > m_{\pi^\prime}$; however, in heavy + heavy meson spectra, radial excitations of vector mesons are always slightly heavier than their pseudoscalar partners. We complete Fig. 1(a) by including predictions for meson masses obtained using the ACM-corrected gluon-quark vertex specified by Eqs. (12) in formulating the kernels of the gap and Bethe–Salpeter equations. In addition to the observations already made, our analysis predicts a radial excitation of the $b_1$-meson with mass $m_{b_1^\prime} \approx 1.5$ GeV. Such a $2\,^1\!P_1$ state has not yet been seen. Summary and Perspective. We have presented a novel, flexible method for deriving a Bethe–Salpeter kernel for the meson bound-state problem that is symmetry-consistent with any admissible form for the gluon-quark vertex, $\varGamma$. The construction is applicable even if the diagrammatic content of $\varGamma$ is unknown, as would be the case if the vertex were obtained using lattice-QCD. It therefore establishes a route to new synergies between continuum and lattice approaches to strong interactions. The kernel is minimal in the same sense as a resolution of the Ward–Green–Takahashi identity for the photon-quark vertex, $\varGamma^\gamma$: it is not the complete result; but it is both a key part of the kernel and a tool enabling demonstrations of consequences of emergent hadronic mass (EHM) that would otherwise be impossible. The scheme was illustrated using a gluon-quark vertex that includes the EHM-induced dressed-quark anomalous magnetic moment, $\kappa$. Using a strength for $\kappa$ commensurate with independent estimates, its presence in the vertex and expression in the Bethe–Salpeter kernel were shown to remedy known failings of the commonly used rainbow-ladder (RL) truncation, e.g., correcting both the mass-splitting between the $a_1$- and $\rho$-mesons and the level ordering of the $\pi$-and $\rho$ meson radial excitations. As this was the first demonstration of the new scheme, a simplified treatment of quark-antiquark scattering was used. Thus, it would be natural to repeat this study using a more realistic interaction. Moreover, only light-quark mesons were considered. The spectrum of states in $3$-flavor QCD is much richer, presenting more opportunities for discoveries and increased understanding; and this challenge should be tackled. Finally, the treatment of baryons using a three valence-quark Faddeev equation is today only possible using the RL truncation. The scheme described herein can be extended to overcome that limitation. These efforts are underway. We are grateful for constructive comments from Z.-F. Cui and Y.-X. Liu. This work was partially completed under the auspices of a Maria Goeppert-Mayer Postdoctoral Fellowship at Argonne National Laboratory. References PROCESSES INVOLVING CHARGED MESONSHigh Energy Photons from Proton-Nucleon CollisionsEvidence for the Production of Neutral Mesons by PhotonsSymmetries of Baryons and MesonsA schematic model of baryons and mesonsEvidence for a π − π Resonance in the I = 1 , J = 1 StateProduction of Multimeson Resonances by π + p Interaction and Evidence for a π ω ResonanceBackward production of a spin parity 1+ϱπ enhancement at 1.04 GeVDiffractive production of 3π states at 63 and 94 GeVππ phenomenology below 1100 MeVFrom controversy to precision on the sigma meson: A review on the status of the non-ordinary f0(500) resonanceReflections upon the emergence of hadronic massEmpirical Consequences of Emergent MassQuasi-Particles and Gauge Invariance in the Theory of SuperconductivityField theories with « Superconductor » solutionsQCD and Hadron PhysicsStrong QCD from Hadron Structure ExperimentsDiquark correlations in hadron physics: Origin, impact and evidenceAnalysis of a quenched lattice-QCD dressed-quark propagatorUnquenched quark propagator in Landau gaugeFinite volume effects in a quenched lattice-QCD quark propagatorAnalysis of full-QCD and quenched-QCD lattice propagatorsA Relativistic Equation for Bound-State ProblemsA General Survey of the Theory of the Bethe-Salpeter EquationBound states of quarksThree Lectures on Hadron PhysicsBaryons as relativistic three-quark bound statesFermion and Photon gap-equations in Minkowski space within the Nakanishi Integral Representation methodImpressions of the Continuum Bound State Problem in QCDSketching the Bethe-Salpeter KernelProbing the Gluon Self-Interaction in Light MesonsTracing masses of ground-state light-quark mesonsLight mesons in QCD and unquenching effects from the 3PI effective actionSymmetry preserving truncations of the gap and Bethe-Salpeter equationsPractical corollaries of transverse Ward–Green–Takahashi identitiesWard–Green–Takahashi identities and the axial-vector vertexDynamical chiral symmetry breaking and the fermion–gauge-boson vertexOn the quark-gluon vertex and quark-ghost kernel: combining lattice simulations with Dyson-Schwinger equationsNew method for determining the quark-gluon vertexChiral symmetry breaking in continuum QCDQuark-gluon vertex: A perturbation theory primer and beyondInteraction model for the gap equationDressed-Quark Anomalous Magnetic MomentsInvestigation of rainbow-ladder truncation for excited and exotic mesonsBridging a gap between continuum-QCD and ab initio predictions of hadron observablesThe gluon mass generation mechanism: A concise primerEffective charge from lattice QCDNonperturbative properties of Yang–Mills theoriesMass dependence of pseudoscalar meson elastic form factors γ * γ → η , η ′ transition form factorsDrawing insights from pion parton distributionsHiggs modulation of emergent mass as revealed in kaon and pion parton distributionsKaon and pion parton distributionsMasses of ground-state mesons and baryons, including those with heavy quarksDynamical chiral symmetry breaking, Goldstone’s theorem, and the consistency of the Schwinger-Dyson and Bethe-Salpeter equationsGoldstone theorem and diquark confinement beyond rainbow-ladder approximationNatural constraints on the gluon-quark vertexNonperturbative structure of the quark-gluon vertexQuark–gluon vertex in general kinematicsPion mass and decay constantBehavior of Current Divergences under SU 3 × SU 3 Confinement, Diquarks and Goldstone's theoremSurvey of J = 0 , 1 mesons in a Bethe-Salpeter approachCovariant study of tensor mesonsCollective Perspective on Advances in Dyson—Schwinger Equation QCDNew perspective on hybrid mesonsPrecise Relations between the Spectra of Vector and Axial-Vector MesonsSchwinger functions, light-quark bound states and sigma termsThe light scalar mesons as tetraquarks σ -meson: Four-quark versus two-quark components and decay width in a Bethe-Salpeter approachNature of the f 0 ( 600 ) Scalar Meson from its N c Dependence at Two Loops in Unitarized Chiral Perturbation Theory
[1] Lattes C M G, Muirhead H, Occhialini G P S, and Powell C F 1947 Nature 159 694
[2] Bjorklund R, Crandall W E, Moyer B J, and York H F 1950 Phys. Rev. 77 213
[3] Steinberger J, Panofsky W, and Steller J 1950 Phys. Rev. 78 802
[4] Gell-Mann M 1962 Phys. Rev. 125 1067
Also see 1961 The Eightfold Way: A Theory of Strong Interaction Symmetry, DOE Technical Report TID-12608
[5] Gell-Mann M 1964 Phys. Lett. 8 214
[6]Zweig G 1964 An SU(3) Model for Strong Interaction Symmetry and Its Breaking Parts 1 and 2 (CERN Reports Nos. 8182/TH401 and 8419/TH412)
[7] Erwin A R, March R, Walker W D, and West E 1961 Phys. Rev. Lett. 6 628
[8] Abolins M A, Lander R L, Mehlhop W A W, Xuong N H, and Yager P M 1963 Phys. Rev. Lett. 11 381
[9] Gavillet P et al. 1977 Phys. Lett. B 69 119
[10] Daum C, Hertzberger L, Hoogland W et al. 1981 Nucl. Phys. B 182 269
[11] Basdevant J L, Froggatt C D, and Petersen J L 1972 Phys. Lett. B 41 178
[12] Pelaez J R 2016 Phys. Rep. 658 1
[13]Zyla P A et al. (Particle Data Group) 2020 Prog. Theor. Exp. Phys. 2020 083C01
[14] Roberts C D and Schmidt S M 2020 Eur. Phys. J. Spec. Top. 229 3319
[15] Roberts C D 2020 Symmetry 12 1468
[16] Nambu Y 1960 Phys. Rev. 117 648
[17] Goldstone J 1961 Nuovo Cimento 19 154
[18] Brodsky S J et al. 2015 arXiv:1502.05728 [hep-ph]
[19] Brodsky S J et al. 2020 Int. J. Mod. Phys. E 29 2030006
[20] Barabanov Yu M et al. 2021 Prog. Part. Nucl. Phys. 116 103835
[21] Bhagwat M S, Pichowsky M A, Roberts C D, and Tandy P C 2003 Phys. Rev. C 68 015203
[22] Bowman P O et al. 2005 Phys. Rev. D 71 054507
[23] Fischer C S and Pennington M R 2006 Phys. Rev. D 73 034029
[24] Bhagwat M S and Tandy P C 2006 AIP Conf. Proc. 842 225
[25] Salpeter E E and Bethe H A 1951 Phys. Rev. 84 1232
[26] Nakanishi N 1969 Prog. Theor. Phys. Suppl. 43 1
[27] Lucha W, Schöberl F F, and Gromes D 1991 Phys. Rep. 200 127
[28] Roberts C D 2016 J. Phys.: Conf. Ser. 706 022003
[29] Eichmann G, Sanchis-Alepuz H, Williams R, Alkofer R, and Fischer C S 2016 Prog. Part. Nucl. Phys. 91 1
[30] Mezrag C and Salmè G 2020 arXiv:2006.15947 [hep-ph]
[31] Qin S X and Roberts C D 2020 Chin. Phys. Lett. 37 121201
[32] Chang L and Roberts C D 2009 Phys. Rev. Lett. 103 081601
[33] Fischer C S and Williams R 2009 Phys. Rev. Lett. 103 122001
[34] Chang L and Roberts C D 2012 Phys. Rev. C 85 052201(R)
[35] Williams R, Fischer C S, and Heupel W 2016 Phys. Rev. D 93 034026
[36] Binosi D, Chang L, Qin S X, Papavassiliou J, and Roberts C D 2016 Phys. Rev. D 93 096010
[37] Qin S X, Chang L, Liu Y X, Roberts C D, and Schmidt S M 2013 Phys. Lett. B 722 384
[38] Qin S X, Roberts C D, and Schmidt S M 2014 Phys. Lett. B 733 202
[39] Bashir A, Bermúdez R, Chang L, and Roberts C D 2012 Phys. Rev. C 85 045205
[40] Rojas E, de Melo J P B C, El-Bennich B, Oliveira O, and Frederico T 2013 J. High Energy Phys. 2013(10) 193
[41] Aguilar A C, Binosi D, Ibañez D, and Papavassiliou J 2014 Phys. Rev. D 90 065027
[42] Mitter M, Pawlowski J M, and Strodthoff N 2015 Phys. Rev. D 91 054035
[43] Bermudez R, Albino L, Gutiérrez-Guerrero L X, Tejeda-Yeomans M E, and Bashir A 2017 Phys. Rev. D 95 034041
[44] Qin S X, Chang L, Liu Y X, Roberts C D, and Wilson D J 2011 Phys. Rev. C 84 042202(R)
[45] Chang L, Liu Y X, and Roberts C D 2011 Phys. Rev. Lett. 106 072001
[46] Qin S X, Chang L, Liu Y X, Roberts C D, and Wilson D J 2012 Phys. Rev. C 85 035202
[47] Binosi D, Chang L, Papavassiliou J, and Roberts C D 2015 Phys. Lett. B 742 183
[48] Aguilar A C, Binosi D, and Papavassiliou J 2016 Front. Phys. 11 111203
[49] Cui Z F et al. 2020 Chin. Phys. C 44 083102
[50] Huber M Q 2020 Phys. Rep. 879 1
[51] Chen M, Ding M, Chang L, and Roberts C D 2018 Phys. Rev. D 98 091505(R)
[52] Ding M H et al. 2019 Phys. Rev. D 99 014014
[53] Ding M H et al. 2020 Chin. Phys. C 44 031002
[54] Cui Z F et al. 2021 Eur. Phys. J. A 57 5
[55] Cui Z F et al. 2020 Eur. Phys. J. C 80 1064
[56] Yin P L et al. 2019 Phys. Rev. D 100 034008
[57] Munczek H J 1995 Phys. Rev. D 52 4736
[58] Bender A, Roberts C D, and von Smekal L 1996 Phys. Lett. B 380 7
[59] Binosi D, Chang L, Papavassiliou J, Qin S X, and Roberts C D 2017 Phys. Rev. D 95 031501(R)
[60] Skullerud J I, Bowman P O, Kızılersü A, Leinweber D B, and Williams A G 2003 J. High Energy Phys. 2003(04) 047
[61] Kızılersü A, Leinweber D B, Skullerud J I, and Williams A G 2007 Eur. Phys. J. C 50 871
[62] Maris P, Roberts C D, and Tandy P C 1998 Phys. Lett. B 420 267
[63] Gell-Mann M, Oakes R J, and Renner B 1968 Phys. Rev. 175 2195
[64] Roberts C D 1996 arXiv:nucl-th/9609039
[65] Krassnigg A 2009 Phys. Rev. D 80 114010
[66] Krassnigg A and Blank M 2011 Phys. Rev. D 83 096006
[67] Adnan B et al. 2012 Commun. Theor. Phys. 58 79
[68] Xu S S et al. 2019 Eur. Phys. J. A 55 113
[69] Weinberg S 1967 Phys. Rev. Lett. 18 507
[70] Höll A, Maris P, Roberts C D, and Wright S V 2006 Nucl. Phys. B Proc. Suppl. 161 87
[71] Eichmann G, Fischer C S, and Heupel W 2016 Phys. Lett. B 753 282
[72] Santowsky N, Eichmann G, Fischer C S, Wallbott P C, and Williams R 2020 Phys. Rev. D 102 056014
[73] Pelaez J R and Rios G 2006 Phys. Rev. Lett. 97 242002
