⇦Chinese Physics Letters, 2018, Vol. 35, No. 5, Article code 057301Express Letter Atomic-Ordering-Induced Quantum Phase Transition between Topological Crystalline Insulator and $Z_{2}$ Topological Insulator * Hui-Xiong Deng(邓惠雄)1,2**, Zhi-Gang Song(宋志刚)1, Shu-Shen Li(李树深)1,2,3, Su-Huai Wei(魏苏淮)4**, Jun-Wei Luo(骆军委)1,2,3** Affiliations 1State Key Laboratory of Superlattices and Microstructures, Institute of Semiconductors, Chinese Academy of Sciences, Beijing 100083 2University of Chinese Academy of Sciences, Beijing 100049 3Beijing Academy of Quantum Information Sciences, Beijing 100193 4Beijing Computational Science Research Center, Beijing 100094 Received 21 February 2018, online 28 March 2018 *Supported by the Major State Basic Research Development Program of China under Grant No 2016YFB0700700, and the National Natural Science Foundation of China (NSFC) under Grants Nos 11634003, 11474273, 61121491 and U1530401. H. X. D. was also supported by the Youth Innovation Promotion Association of CAS (2017154).
**Corresponding authors. Email: hxdeng@semi.ac.cn; suhuaiwei@csrc.ac.cn; jwluo@semi.ac.cn Citation Text: Deng H X, Song Z G, Li S S, Wei S H and Luo J W 2018 Chin. Phys. Lett. 35 057301 Abstract Topological phase transition in a single material usually refers to transitions between a trivial band insulator and a topological Dirac phase, and the transition may also occur between different classes of topological Dirac phases. It is a fundamental challenge to realize quantum transition between $Z_{2}$ nontrivial topological insulator (TI) and topological crystalline insulator (TCI) in one material because $Z_{2}$ TI and TCI have different requirements on the number of band inversions. The $Z_{2}$ TIs must have an odd number of band inversions over all the time-reversal invariant momenta, whereas the newly discovered TCIs, as a distinct class of the topological Dirac materials protected by the underlying crystalline symmetry, owns an even number of band inversions. Taking PbSnTe$_{2}$ alloy as an example, here we demonstrate that the atomic-ordering is an effective way to tune the symmetry of the alloy so that we can electrically switch between TCI phase and $Z_{2}$ TI phase in a single material. Our results suggest that the atomic-ordering provides a new platform towards the realization of reversibly switching between different topological phases to explore novel applications. DOI:10.1088/0256-307X/35/5/057301 PACS:73.43.Nq, 71.20.Nr, 73.20.At, 71.15.Mb © 2018 Chinese Physics Society Article Text Topological insulators (TIs)[1-8] are an emerging class of quantum materials, which are nontrivial under the $Z_{2}$ topological classification (i.e., $Z_{2}= 1$) usually resulting from band inversions occurring at an odd number of time-reversal-invariant momenta (TRIMs). These materials possess topological surface states spanning the insulating bulk bandgap, when they are placed next to a vacuum or a $Z_{2}$ topological trivial material, owing to the impossible change of the characterized topological invariant in crossing the interface between them without closing the band gap.[9] These spin-momentum-locked helical surface states exhibit Dirac-cone energy dispersion across the bulk bandgap, and are topologically protected by the time-reversal symmetry (TRS).[2,6,7,9] However, some materials such as SnTe also possess band inversions, whereas they are $Z_{2}$ topological trivial because their band inversions occur at an even number of TRIMs (e.g., SnTe band inversions occur at 4 $L$-points.[10,11] Recent theoretical results followed by experimental validations have suggested that these materials are topological crystalline insulators (TCIs),[12-15] a subclass of topological insulators in which the underlying crystalline symmetry replaces the role of the TRS in ensuring a new topological invariant of mirror Chern number instead of the $Z_{2}$ index. $Z_{2}$ TI and TCI have very distinct topology of surface electronic structures,[16-18] despite their common characteristics of topological protected gapless spin-momentum-locked surface states and an intrinsic orbital texture switch occurring exactly at the Dirac point.[19,20] For instance, the Dirac points in $Z_{2}$ TIs are nailed to TRIMs as a result of TRS protection,[4-8,21] whereas the Dirac points in TCIs are away from the TRIMs,[13-18] demonstrating their irrelevance to the TRS-related protection. As a consequence of different topological invariants, the $Z_{2}$ topological states are robust against general time-reversal invariant perturbations, however, the TCI topological states have a much wider range of tunable electronic properties under various perturbations, such as structural distortion, magnetic dopant, mechanical strain, thickness engineering, and disorder. Specifically, topological surface states in the $Z_{2}$ TIs are susceptible to TRS-breaking disorders such as magnetic defects; however, in the TCI system it is possible to realize magnetic yet topologically protected surface states due to its irrelevance to the TRS, which is a fundamentally distinct from the $Z_{2}$ TIs. Subsequently, the magnetic and superconducting orders in the TCI surface states can be disparate from those observed in the $Z_{2}$ TIs. Perturbations without breaking TRS in the TCIs can move Dirac points in momentum space, mimicking the effect of a gauge field vector potential,[22] and open an energy gap at the Dirac point, generating Dirac mass.[23,24] Changing the alloying composition[25] or applying a strain[18,22] are two recently demonstrated effective ways of moving surface Dirac points in TCIs. Moreover, accompanying the formation of offspring Dirac cones, both Lifshitz transitions and Van Hove singularity (VHS) were aware of the existing in TCI band structures.[20,23] Considering the broad applications of magnetic materials in modern electronics, such topologically protected surface states compatible with magnetism will be of considerable interest regarding integrating TI materials into future electronic devices. Because $Z_{2}$ TI and TCI topological states have their own unique topological features, the feasibility of reversible topological phase transition between $Z_{2}$ TI and TCI phases in a single material is highly desirable to explore novel applications. Although some attempts have been made to achieve such topological phase transition by reducing the crystal lattice symmetry through strain engineering or forming surfaces,[10,11] to the best of our knowledge, it has not been realized either in theoretical predictions or experimental observations. For instance, Fu et al.[10] proposed, in their pioneering study of $Z_{2}$ TIs, that an uniaxial strain applied along the [111] direction to the Pb$_{x}$Sn$_{1-x}$Te alloy separates in energy the $L$ point along the [111] direction from three remaining $L$ points and may result in an odd number of band inversions (thus realizing the $Z_{2}$ TI phase) at certain composition $x$. However, we found that such proposal will not work because Pb$_{x}$Sn$_{1-x}$Te alloy becomes metallic before occurring odd number of band inversions, after analyzing the band structure of PbTe and SnTe (Figure S1 in the Supplemental Material). In this Letter, we propose an alternative scheme to achieve for the first time the unusual topological phase transition between $Z_{2}$ TI and TCI in a single material via atomic-ordering. We consider PbSnTe$_{2}$ alloy as a prototype to demonstrate that the atomic ordering of this alloy into the CuPt phase breaks the four (parent) equivalent rocksalt $L$ points into one (child) $\overline{\it\Gamma}$ and three (child) $\overline F$ points with non-identical bandgaps. Subsequently, as schematically shown in Fig. 1(a), an electrical controllable strain applied to the CuPt-ordered PbSnTe$_{2}$ alloy drives gap-closing first at the child $\overline{\it\Gamma}$ point (becoming odd number of band inversions) and then at the three equivalent child $\overline F$ point (becoming a normal insulator), consequently, achieving a reversible quantum transition between $Z_{2}$ TI and TCI phases. The group IV chalcogenide SnTe is a prototype TCI. It possesses a rocksalt crystal structure with $O_{h}$ symmetry at room temperature, and its fundamental band gap occurs at four equivalent $L$ points in the face-centered-cubic (FCC) Brillouin zone (BZ). Despite the fact that Sn sits between Ge and Pb in the same column of the periodic table, SnTe is a TCI with inverted bandgaps whereas PbTe and GeTe are normal trivial insulators.[26] We can easily engineer these (rocksalt) group IV chalcogenides from normal insulator to TCI or vice versa by forming random mixed-cation chalcogenide alloys,[27] but not from TCI to $Z_{2}$ TI because the bandgaps of these alloys always occur at even (four) equivalent $L$ points. The unusual TCI to $Z_{2}$ TI topological phase transition may become possible if the alloys form lower symmetry ordered phases that break the symmetry and the equivalence of $L$ points in rocksalt structure. Many III–V zinc-blende semiconductor alloys exhibit spontaneous CuPt-like ordering when grown epitaxially on lattice-matched substrate[28] and for IV–VI rocksalt lead chalcogenides alloys CuPt-like ordering is predicted to be the most stable phase in coherent growth.[29] To confirm this, we have calculated, using the first-principles density functional theory (DFT) (see Supplemental Material for more details of the computational method), the alloy formation energies $\Delta H_{f}\left( \sigma,A_{1-x}B_{x}C \right)=E\left( \sigma,A_{1-x}B_{x}C \right)-[(1-x)E\left( AC \right)+xE\left( BC \right)]$ at composition $x = 0.5$ (with configuration $\sigma$ in random structure and common ordered alloy structures[29]). The ordered configurations $\sigma$ we studied are CuPt [(1,1) superlattice along the (111) direction], CuAu [(1,1) superlattice along the (001) direction], chalcopyrite [(2,2) superlattice along the (201) direction], Y2 [(2,2) superlattice along the (110) direction], and Z2 [(2,2) superlattice along the (001) direction]. The random alloy is modeled here using the "special quasi random structures" (SQS) approach.[30] These results are summarized in Table SI in the Supplemental Material. We find that the CuPt-ordered structure with a point group of $D_{3d}$ indeed has the lowest formation energy, indicating that rocksalt $A{BC}_{2}$ ($A$ or $B$ = Ge, Sn, Pb, $C$ = Te, Se) alloys can spontaneously order in the CuPt structure during lattice matched coherent growth. This finding is expected because the CuPt structure possesses the smallest strain energy over all the alloy structures because it can allow all nearest cation-anion bonds to attain their respective ideal equilibrium lengths with the minimum bond bending.[29] As a result, the energy differences between the ground state CuPt structure and the SQS structure of the $A{BC}_{2}$ ($A$ or $B$ = Ge, Sn, Pb; $C$ = Te, Se) alloys increase monotonically with the magnitude of the lattice mismatch between the two end constituents, as shown in Table SI. Our prediction is consistent with extensive experimental observations of CuPt-ordered structure widely in the III–V,[31-34] II–VI,[35,36] and IV–VI[37] semiconductor alloys.
Fig. 1. Electrically control of reversible quantum phase transition between topological crystalline insulator (TCI) and $Z_{\bf 2}$ topological insulator TI. (a) Sketch of the strain-tunable topological phase transition among topological crystalline insulator (TCI), topological insulator (TI), and normal insulator (NI). The top layer is the CuPt ordered PbSnTe$_{2}$ alloy. The bottom layer is the piezoelectric materials (PEM), which can change the in-plane strain by applying voltage. (b) Band gaps at $\overline{\it\Gamma}$ and $\overline F$ points as a function of biaxial strain, and the topological invariant quantity $Z_{2}$ (here only the strong topological index $\upsilon_{0}$ is shown for 3D system) as a function of biaxial strain for the CuPt ordered alloy. (c) The schematic evolution of band edges at $\overline{\it\Gamma}$ and $\overline F$ points as a function of biaxial strain (0.9%–1.3%) in the CuPt-ordered PbSnTe$_{2}$ alloy. The subscript (minus and plus signs) represent the odd and even parities, respectively.
The CuPt-ordered alloy structure possesses a double sized rhombohedral unit cell and thus half the BZ compared to the parent rocksalt structure, along with a symmetry reduction from $O_{h}$ to $D_{3d}$ ($R\overline 3\,m$ space group), as shown in Figs. 2(a) and 2(b). As a consequence, four equivalent $L$ points in the rocksalt BZ transform separately to one $\overline{\it\Gamma}$ point and three $\overline F$ points in the reduced CuPt-like structure BZ, in which $\overline{\it\Gamma}$ and $\overline F$ are no longer symmetry-equivalent.[38] The bandgaps at $\overline{\it\Gamma}$ and $\overline F$ points may become non-identical owing to the fact that they have different symmetries, which control the inter-band coupling. Therefore, CuPt-ordered $A{BC}_{2}$ ($A$ or $B$ = Ge, Sn, Pb; $C$ = Te, Se) alloys provide an ideal test bed for exploring the topological phase transition from TCI to $Z_{2}$ TI through engineering the band structure. If band inversion occurs only at the $\overline{\it\Gamma}$ point but not at remaining TRIM $k$ points, the CuPt-ordered alloy becomes a ${\it\Gamma}$-phase $Z_{2}$ TI;[39] if band inversions occur exclusively at three equivalent $\overline F$ points or at both $\overline{\it\Gamma}$ and $\overline F$ points, the alloy becomes translationally active phase TI[39] or TCI like in the SnTe, respectively. Figure S2 in the Supplemental Material shows the first-principles calculation band structure of CuPt-ordered PbSnTe$_{2}$ alloy with the equilibrium lattice constant using the modified Becke and Johnson exchange potential.[40] The bandgaps at $\overline{\it\Gamma}$ and $\overline F$ points are indeed non-identical with values of 42.5 and 19.4 meV, respectively, although both of them are derived from the symmetry equivalent $L$ points in the parent rocksalt group-IV tellurides. By analyzing the wave function characters, we find that the conduction band edge (CBE) at the $\overline{\it\Gamma}$ point mainly comes from the anion $p$ orbital with an even parity (+) and the valence band edge (VBE) from the cation $p$ orbital with an odd parity ($-$). Such band order is same as the $\overline F$ point as well as in the SnTe, indicating bandgaps at both $\overline{\it\Gamma}$ and $\overline F$ points are inverted and the PbSnTe$_{2}$ alloy is a TCI.[17] The non-identical bandgaps at $\overline{\it\Gamma}$ and $\overline F$ points, which are an unique property of CuPt-ordered PbSnTe$_{2}$ alloy, provide us an opportunity to realize the quantum phase transition from TCI to $Z_{2}$ TI, considering that we could further engineer the band structure of the alloy to ensure band inversions occurring separately at $\overline{\it\Gamma}$ and $\overline F$ points, e.g., by applying strain or pressure.

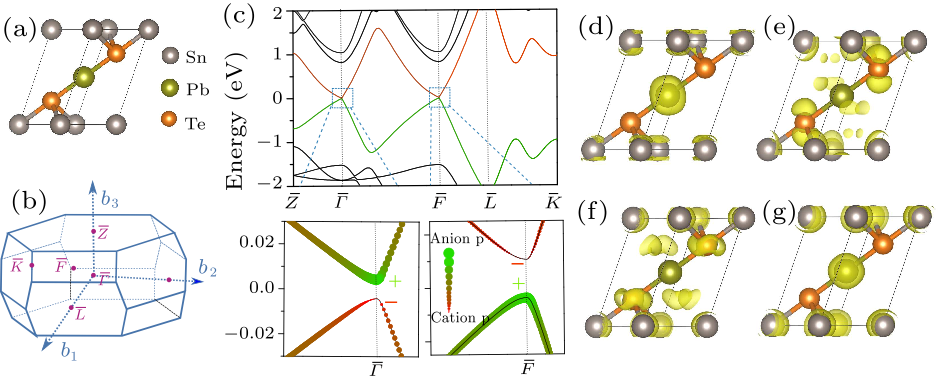

Fig. 2. Band structure of CuPt-order PbSnTe$_{\mathbf{2}}$ alloy under biaxial strain. (a) Crystal structures of CuPt ordered PbSnTe$_{2}$ alloy. (b) Brillouin zone for CuPt alloy with space group $R\overline{3}m$. (c) Bulk band dispersions of CuPt-order PbSnTe$_{2}$ alloy under 1.13% tension strain are shown along high-symmetry lines $\overline Z$ (0 0 0.5)–$\overline{\it\Gamma}$ (0 0 0)–$\overline F$ (0 0.5 0.5)–$\overline L$ (0 0.5 0)–$\overline {K}$ (0.31,0.66,0.66) calculated by the modified Becke and Johnson exchange potential. In the CuPt structure, the four equivalent $L$ points in the rocksalt phase project into one $\overline{\it\Gamma}$ and three equivalent $\overline F$ points (i.e. "4=1+3"). The bottom plots show the band character of CBE and VBE near the $\overline{\it\Gamma}$ and $\overline F$ points, respectively. The wide green and narrow red lines indicate that the band is dominated by the anion (Te) $p$ and cation (Sn and Pb) $p$ states, respectively, and the corresponding parities are also labeled. (d)–(g) The charge density distribution of the VBE (d, f) and CBE (e, g) at the $\overline{\it\Gamma}$, and $\overline F$ point, respectively. The value of the isosurfaces is set to $3\times10^{3}$ $e$/Å$^{3}$.
The strain has been demonstrated to be a particular compelling tuning "knob" to engineer the electronic band structure,[18,22,41] as it can tune the interatomic lattice spacing and induce an accompanying adjustment in the electronic band structure for a fixed chemical composition. In TCIs, for example, strain has been explored to generate pseudo-magnetic fields and helical flat bands,[22] to engineer the phase transition from normal insulator to TCI,[41] and to finely modify the characteristics of the topological surface bands.[18] Controllable manipulation of strain is necessary for the creation of suitable platforms for applications in the growing field of straintronics.[18] A promising pathway may involve the use of electric-field-induced strains,[42] in which the change of inter-atomic lattice spacing is relying on the piezoelectric response of a piezoelectric material substrate to the electric field. The piezoelectric effect is the linear electromechanical interaction between the mechanical and the electrical state in a crystal. A reversible electric-field-induced strain of over 5% has been reported, e.g., in BiFeO$_{3}$ films[42] and piezoelectric-induced strains have been employed, e.g., to tune semiconductor quantum dots for strain-tunable entangled-light-emitting diodes.[43] Here we propose to place the PbSnTe$_{2}$ alloy film onto a piezoelectric actuator via gold-thermocompression bonding, as described in Ref. [43], allowing the in situ application of on-demand biaxial strains by tuning the voltage (electric field), as schematically shown in Fig. 1. By sweeping the gate voltage applied to the piezoelectric actuator from negative to positive and vice versa, we can reversibly tune the biaxial strain applied to the PbSnTe$_{2}$ alloy from the compressive (negative) to the tensile (positive). Upon application of 1.13% tensile strain, we indeed find that the CuPt-ordered TCI PbSnTe$_{2}$ alloy becomes a $Z_{2}$ TI, achieving a novel topological phase transition from TCI to $Z_{2}$ TI. Figure 2(c) shows that, at the $\overline{\it\Gamma}$ point, the state of the CBE mainly comes from the anion $p$ orbital with an even parity (+) and the state of the VBE from the cation (Pb) $p$ orbital with an odd parity ($-$). Such band order is same as in the TCI SnTe and is thus inverted. However, at $\overline F$ points, the state of the CBE mainly arises from the cation $p$ orbital ($-$) and the state of the VBE from the anion $p$ orbital (+), being opposite to the band order in the TCI SnTe. We assign the PbSnTe$_{2}$ alloy under 1.13% tensile strain as a ${\it\Gamma}$-phase $Z_{2}$ TI because it has one band inversion (at the $\overline{\it\Gamma}$ point). To further confirm our assignment, we have calculated the $Z_{2}$ topological invariants (see Supplemental Material) following the procedure introduced by Soluyanov and Vanderbilt.[44] We find its $Z_{2}$ being (1;000), which is an index of a strong $Z_{2}$ TI,[39] despite that its end constitute SnTe is a TCI and PbTe is a trivial band insulator. We next examine topological properties of the CuPt-ordered PbSnTe$_{2}$ alloy in a wide range of strains. Figure 1(b) shows the band-edge evolutions of PbSnTe$_{2}$ alloy as a function of biaxial strain from 0.9% to 1.3%. The CBEs at both $\overline{\it\Gamma}$ and $\overline F$ points shift at the same rate to lower energy, whereas VBEs to higher energy also at the same rate, as reducing the strain. Such responses of CBEs and VBEs to applied strain are expected for bonding and anti-bonding states, respectively. Because of distinct bandgaps at $\overline{\it\Gamma}$ and $\overline F$ points, there are two critical points $c_{\overline F}$ (=1.02%) and $c_{\overline{\it\Gamma}}$ (=1.16%), corresponding to the strains where band order changing occurs at $\overline F$ and $\overline{\it\Gamma}$ points, respectively. From band edge evolutions, we can straightforwardly find that, when strain is smaller than $c_{\overline{\it\Gamma}}$ (left area in Fig. 1(b)), band inversions occur at both $\overline{\it\Gamma}$ and $\overline F$ points in the PbSeTe$_{2}$ alloy, which remains a TCI being $Z_{2}$ trivial (i.e., $Z_{2}=$ (0;000)) but Mirror Chern number nontrivial. As we continuously increase the applied tensile strain to exceed $c_{\overline F}$ but smaller than $c_{\overline{\it\Gamma}}$ (middle area in Fig. 1(b)), band order changes to normal at $\overline F$ points but remains inverted at the $\overline{\it\Gamma}$ point, therefore PbSeTe$_{2}$ alloy becomes a $Z_{2}$ TI (i.e., $Z_{2}=$ (1;000), as shown in the bottom of Fig. 1(b)). When we further increase the applied strain larger than $c_{\overline{\it\Gamma}}$, there is no band inversion occurring in PbSeTe$_{2}$ alloy at both $\overline{\it\Gamma}$ and $\overline F$ points or any other $k$ points, indicating PbSeTe$_{2}$ alloy within this strain range being a trivial normal insulator (i.e., $Z_{2}=$ (0;000)). Therefore, we have demonstrated, for the first time, the unusual topological phase transition from TCI to $Z_{2}$ TI, in addition to the quantum phase transition between normal insulator and $Z_{2}$ TI. Such unusual topological transition is reversible since it is achieved with a combination of atomic ordering and strain, which can be electrically controlled by the gate electric fields via the piezoelectric effect. These transitions can be performed reversibly using the electric field to control the strain, as schematically illustrated in Fig. 1(a). It is interesting to note that the strain can also drive the PbSnTe$_{2}$ alloy to become three-dimensional (3D) topological Dirac materials (TDMs), at two transition points $c_{\overline{\it\Gamma}}$ (between $Z_{2}$ TI and normal insulator) and $c_{\overline F}$ (between $Z_{2}$ TI and TCI), respectively. The 3D TDMs are another novel state of quantum matter, being viewed as a 3D graphene with linear energy dispersions along all three momentum directions rather than in a two-dimensional (2D) plane of the Dirac fermions in graphene or on the surface of 3D topological insulators. At transition point $c_{\overline{\it\Gamma}}$, PbSnTe$_{2}$ alloy owns a single 3D Dirac cone, whereas it possesses three 3D Dirac cones at $c_{\overline F}$ point. Each 3D Dirac cone in a TDM is composed of two overlapping Weyl fermions,[45-47] which can be separated in the momentum space, by breaking the time reversal or inversion symmetry, to form the topological Weyl semimetal, a new topological quantum state exhibiting unique Fermi arcs on the surface.[48,49] Having realized the transition between $Z_{2}$ TI and TCI, we turn to compare the topological surface band structures between $Z_{2}$ TI and TCI phases in the CuPt-ordered PbSnTe$_{2}$ alloy. Owing to the CuPt-ordered structure is symmetric about the {110} mirror planes, we calculate band structures of [001]-oriented slabs made of CuPt-ordered PbSnTe$_{2}$ alloy, which is symmetric through the {110} mirror plane, in TCI phase (Fig. 3(c), under zero strain) and $Z_{2}$ TI phase (Fig. 3(d), under tensile strain of 1.07%), respectively (see Supplemental Material for more details). For [001]-oriented slabs, the $\overline{\it\Gamma}$ point in the CuPt-ordered alloy BZ remains at the projected zone center $\overline{\overline{\it\Gamma}}$ in the surface BZ, whereas one of the $\overline {F}$ points projects to the point of (0, ${\boldsymbol b} _{2})$, and the remaining two $\overline {F}$ points to the $\overline{\overline X}$ point of (1/2 ${\boldsymbol b} _{1}$, 0) (where ${\boldsymbol b} _{1}$ and ${\boldsymbol b} _{2}$ are the reciprocal lattice vectors of the surface BZ (Fig. 3(b))). Apparently, the (0, ${\boldsymbol b} _{2})$ point is equivalent to the $\overline{\overline{\it\Gamma}}$ point since they are just different by a reciprocal vector of the surface BZ. Consequently, in the TCI phase, there are two Dirac cones centered at the $\overline{\overline{\it\Gamma}}$ point of the surface BZ as a result of the band inversions occurring at both $\overline{\it\Gamma}$ and $\overline {F}$ points. Whereas in the $Z_{2}$ TI phase, there is only one Dirac cone centered at the $\overline{\overline{\it\Gamma}}$ point because the band inversion exists exclusively at the $\overline{\overline{\it\Gamma}}$ point. We therefore expect to see significant differences in the surface band structures between TCI and $Z_{2}$ TI phases even in the same CuPt-ordered PbSnTe$_{2}$ alloy.

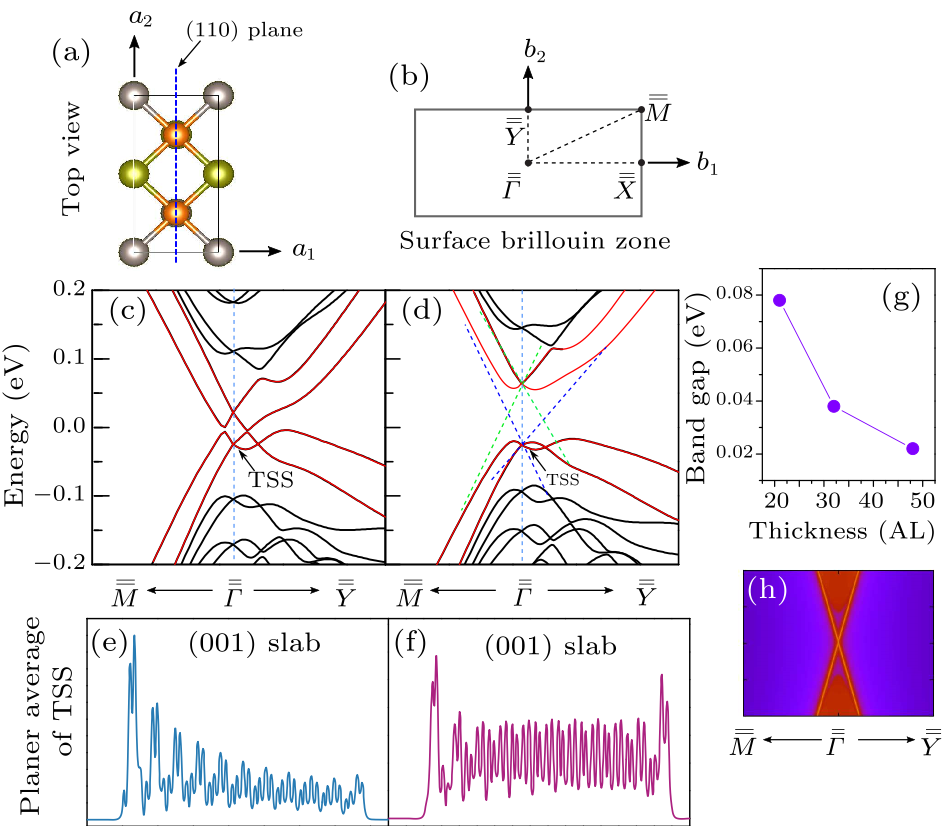

Fig. 3. Topological surface band structures of a 21-atomic-layer thick slab of the CuPt-ordered PbSnTe$_2$ alloy in the TCI and TI phases, respectively. (a) Crystal structure (top view) of the 21-atomic-layer thick slab made of the CuPt-ordered PbSnTe$_{2}$ alloy along the [001] direction. A blue dashed line indicates the (110) mirror plane. (b) The 2D surface BZ of the slab. A double overline is used to mark the high symmetry $k$ points in the surface BZ, distinguishing from ones in reduced 3D alloy BZ (marked with single overline) and ones in the parent rocksalt BZ. (c) The topological surface band structure of the slab in the TCI phase. (d) The topological surface band structure of the slab in the TI phase. (e, f) The wavefunctions of topological surface states located at zone center for TCI and TI phases as indicated by arrows in (c) and (d), respectively. (g) The magnitude of the topological bandgap in the $Z_{2}$ phase as a function of slab thickness. (h) The $k\cdot p$ Hamiltonian model predicted Dirac cone on the surface of the semi-infinite PbSnTe$_{2}$ alloy in the TI phase.
Figure 3(c) shows that the predicted surface band structure of a 21 atomic layers (ALs) thick PbSnTe$_{2}$ alloy slab in the TCI phase is rather complex and involves multiple Dirac cones, as expected for TCIs.[13] It consists of two parent Dirac cones centered at the $\overline{\overline{\it\Gamma}}$ point and vertically offset in energy owing to symmetry enforced coupling between these two Dirac cones. When they come together away from the $\overline{\overline{\it\Gamma}}$ point, the coupling between the lower half of the upper parent Dirac cone and the upper half of the lower parent Dirac cone opens a gap at all points except along the mirror line, leading to the formation of a pair of offspring Dirac points shifted away from the $\overline{\overline{\it\Gamma}}$ point. In the slab surface BZ, the $\overline{\overline{\it\Gamma}}$–$\overline{\overline Y}$ line is a mirror line, which is along the {110} reflection axis. The mirror Chern number is invariant under reflection about the {110} reflection axis, except for the $k$-points on the $\overline{\overline{\it\Gamma}}$–$\overline{\overline Y}$ line (Fig. 3(b)). Thus, all of the $k$-points off the $\overline{\overline{\it\Gamma}}$–$\overline{\overline Y}$ line have the same mirror symmetry and present the same mirror eigenvalues, whereas the $k$-points on the $\overline{\overline{\it\Gamma}}$–$\overline{\overline Y}$ line hold the opposite mirror eigenvalues.[13,16] Consequently, the interaction between the two parent Dirac cones is forbidden along the $\overline{\overline{\it\Gamma}}$–$\overline{\overline Y}$ direction and crosses each other, and such interaction is allowed along remaining $k$-points and opens a gap, leading to the formation of a pair of offspring Dirac cones. This surface band structure is consistent with that of the prototype TCI SnTe, which was discovered theoretically[13,16,22] and confirmed experimentally,[14,27] in the vicinity of Dirac points, except for two striking distinctions. Specifically, we find here that the parent Dirac cones center at the BZ center rather than those at the BZ boundary, and hence, in compared with the TCI SnTe, there is only one pair of offspring Dirac cones instead of two pairs. These two distinctions are consequences of band inversions occurring at different TRIMs in CuPt-ordered PbSnTe$_{2}$ alloy and SnTe, respectively. Accompanying the formation of offspring Dirac cones, more striking features could also be found in the surface band structure of the TCI phase, such as recently revealed the existence of a Lifshitz transition as a result of switching of the orbital characters of the upper parent Dirac cone and the lower parent Dirac cone.[20] The saddle point in the TCI surface band structure (along the $k$-line perpendicular to the mirror line away from the $\overline{\overline{\it\Gamma}}$ point, as shown in Fig. 3(c)) is known as the Van Hove singularity (VHS).[23] The existence of both Lifshitz transitions and VHSs provides the possibility of achieving future quantum applications.[23] Figure 3(d) shows the corresponding surface band structure in the $Z_{2}$ TI phase. In compared with a complex band structure involving multiple Dirac cones in the TCI phase, the surface band structure in the $Z_{2}$ TI phase is quite simple. In general, we expect the Dirac cones centered exactly at the $\overline{\overline{\it\Gamma}}$ point in the $Z_{2}$ TI, owning to the fact that the TRS protects the topological states, and subsequently, without offspring Dirac cones and absence of the Lifshitz transition points. However, we observe a finite Dirac gap of about 0.08 eV as a result of strong hybridization between the two topological surface states (TSSs) located on the top and bottom surfaces, respectively. Figure 3(g) shows, as is expected, that the magnitude of the surface bandgap decreases monotonically as the thickness of the slab increases. Such surface bandgap is an intrinsic feature of finite thick slabs and films,[50] and was frequently observed in thin films of prototype 3D chalcogenide TIs.[51,52] In order to mimic the surface states of the semi-infinite slabs, we also calculate the surface band structure based on the surface Green function with a low-energy effective $k\cdotp$ Hamiltonian model (see the Supplemental Material for more details). We find that there is a gapless Dirac cone at the $\overline{\overline{\it\Gamma}}$ point formed by the surface states in the semi-infinite slab of the PbSnTe$_{2}$ alloy, as shown in Fig. 3(h). In summary, we have shown that the effect of CuPt-like atomic ordering, which is expected to reduce the even number of equivalent $L$ points into odd ones, can be used to realize the odd number of band inversions in the BZ, thus inducing a robust TCI to $Z_{2}$ TI phase transition in materials such as PbSnTe$_{2}$. We further show that in isovalent rocksalt alloys, the CuPt-ordered structure has the lowest alloy formation energies compared to other ordered or disordered alloys, thus can form spontaneously under coherent growth, which is consistent with extensive experimental observations of CuPt-ordered structure widely in the III–V, II–VI and IV–VI semiconductor alloys. By calculating the $Z_{2}$ invariant and topological surface states, we demonstrate that the topological phase transitions from TCI to TI to normal insulator can be achieved by controlling the strain in combination with the ordering in PbSnTe$_{2}$. Because this concept is also applicable to other material systems, our results suggest that atomic ordering provides a new platform to realize the quantum phase transition between different topological phases. References Z 2 Topological Order and the Quantum Spin Hall EffectQuantum Spin Hall Effect and Topological Phase Transition in HgTe Quantum WellsQuantum Spin Hall Insulator State in HgTe Quantum WellsExperimental Realization of a Three-Dimensional Topological Insulator, Bi2Te3Topological insulators in Bi2Se3, Bi2Te3 and Sb2Te3 with a single Dirac cone on the surfaceThe quantum spin Hall effect and topological insulatorsColloquium : Topological insulatorsTopological insulators and superconductorsThe birth of topological insulatorsTopological insulators with inversion symmetryWeak topological insulators in PbTe/SnTe superlatticesTopological Crystalline InsulatorsTopological crystalline insulators in the SnTe material classExperimental realization of a topological crystalline insulator in SnTeTopological crystalline insulator states in Pb1−xSnxSeTwo types of surface states in topological crystalline insulatorsObservation of a topological crystalline insulator phase and topological phase transition in Pb1−xSn x TeStrain engineering Dirac surface states in heteroepitaxial topological crystalline insulator thin filmsMapping the orbital wavefunction of the surface states in three-dimensional topological insulatorsMapping the unconventional orbital texture in topological crystalline insulatorsDesign Principles and Coupling Mechanisms in the 2D Quantum Well Topological Insulator HgTe / CdTe Strain-induced partially flat band, helical snake states and interface superconductivity in topological crystalline insulatorsObservation of Dirac Node Formation and Mass Acquisition in a Topological Crystalline InsulatorDirac mass generation from crystal symmetry breaking on the surfaces of topological crystalline insulatorsTunability of the k -space location of the Dirac cones in the topological crystalline insulator Pb 1 − x Sn x TeThe origin of electronic band structure anomaly in topological crystalline insulator group-IV telluridesExperimental Observation of Dirac-like Surface States and Topological Phase Transition in Pb 1 − x Sn x Te ( 111 ) FilmsElectronic and structural anomalies in lead chalcogenidesSpecial quasirandom structuresOrdered structure in Ga 0.7 In 0.3 P alloyAtomic ordering in III/V semiconductor alloysOrdering-induced band-gap reduction in InAs 1 − x Sb x ( x ≊0.4) alloys and superlatticesLong‐range order in InAsSbAtomic arrangements and formation mechanisms of the CuPt-type ordered structure in CdxZn1−xTe epilayers grown on GaAs substratesSimultaneous existence and atomic arrangement of CuPt-type and CuAu-I type ordered structures near ZnTe/ZnSe heterointerfacesNanostructures in metastable GeBi 2 Te 4 obtained by high-pressure synthesis and rapid quenching and their influence on physical properties E 1 , E 2 , and E 0 ′ transitions and pressure dependence in ordered Ga 0.5 In 0.5 PThe space group classification of topological band-insulatorsAccurate Band Gaps of Semiconductors and Insulators with a Semilocal Exchange-Correlation PotentialStrain engineering of topological properties in lead-salt semiconductorsLarge field-induced strains in a lead-free piezoelectric materialHigh yield and ultrafast sources of electrically triggered entangled-photon pairs based on strain-tunable quantum dotsComputing topological invariants without inversion symmetryDirac semimetal and topological phase transitions in A 3 Bi ( A = Na , K, Rb)Discovery of a Three-Dimensional Topological Dirac Semimetal, Na3BiWidespread transient Hoogsteen base pairs in canonical duplex DNA with variable energeticsWeyl Semimetal Phase in Noncentrosymmetric Transition-Metal MonophosphidesDiscovery of a Weyl fermion semimetal and topological Fermi arcsSplit Dirac cones in HgTe/CdTe quantum wells due to symmetry-enforced level anticrossing at interfacesCrossover of the three-dimensional topological insulator Bi2Se3 to the two-dimensional limit G W calculations for Bi 2 Te 3 and Sb 2 Te 3 thin films: Electronic and topological properties
