⇦Chinese Physics Letters, 2016, Vol. 33, No. 7, Article code 076701⇨ Production of Rubidium Bose–Einstein Condensate in an Optically Plugged Magnetic Quadrupole Trap * Dong-Fang Zhang(张东方)1,3, Tian-You Gao(高天佑)1,3, Ling-Ran Kong(孔令冉)1,3, Kai Li(李凯)1, Kai-Jun Jiang(江开军)1,2** Affiliations 1State Key Laboratory of Magnetic Resonance and Atomic and Molecular Physics, Wuhan Institute of Physics and Mathematics, Chinese Academy of Sciences, Wuhan 430071 2Center for Cold Atom Physics, Chinese Academy of Sciences, Wuhan 430071 3University of Chinese Academy of Sciences, Beijing 100049 Received 19 April 2016 ^*Supported by the National Natural Science Foundation of China under Grant Nos 11434015, 91336106 and 11004224, and the National Basic Research Program of China under Grant No 2011CB921601.
^**Corresponding author. Email: kjjiang@wipm.ac.cn Citation Text: Zhang D F, Gao T Y, Kong L R, Li K and Jiang K J 2016 Chin. Phys. Lett. 33 076701 Abstract We experimentally produce the rubidium Bose–Einstein condensate in an optically plugged magnetic quadrupole trap. A far blue-detuned focused laser beam with a wavelength of 532 nm is plugged in the center of the magnetic quadrupole trap to increase the number of trapped atoms and to suppress the heating. An rf evaporative cooling in the magneto-optical hybrid trap is applied to decrease the atom temperature into degeneracy. The atom number of the condensate is $1.2(0.4)\times10^5$ and the temperature is below 100 nK. We also study characteristic behaviors of the condensate, such as phase space density, condensate fraction and anisotropic expansion. DOI:10.1088/0256-307X/33/7/076701 PACS:67.85.-d, 67.10.Ba, 64.70.fm, 37.10.De © 2016 Chinese Physics Society Article Text Since the experimental observation of Bose–Einstein condensate (BEC) in a dilute gas,[1-3] the ultracold quantum gas has become a reachable tabletop to carry on a wide range of research, such as accurate measurement on physical constants,[4,5] precise spectroscopy,[6] quantum simulation,[7] ultracold chemistry,[8,9] equation of state of strong interacting quantum gases,[10,11] polaron behavior,[12,13] spin–orbit coupling effect,[14,15] and anisotropic character of the p-wave interaction.[16,17] Different kinds of external traps have been used to confine ultracold atoms where evaporative cooling is applied as a final stage to cool atoms into degeneracy, such as time-orbiting potential (TOP) magnetic trap,[1] quadrupole and Ioffe configuration (QUIC) magnetic trap,[18] all optical trap,[19,20] and magneto-optical combination trap.[21] Compared with many other kinds of traps, the optically plugged magnetic quadrupole (OPQ) trap has many advantages, which has been demonstrated in some groups.[3,22-25] First, the tight confinement allows for fast rf evaporative cooling and the large trapping volume offered by the magnetic quadrupole trap facilitates loading of a large number of atoms from the magneto-optical trap (MOT). Secondly, the atom cloud is positioned exactly in the center of the glass cell on the symmetry axis of the quadrupole coil pair, which ensures very good optical access to atoms. Thirdly, the quadrupole coil pair allows the creation of large homogeneous magnetic fields by switching to co-propagating currents, which we can use to address Feshbach resonances. In this Letter, we produce rubidium BEC in an OPQ trap, and show that the laser beam with a wavelength of 532 nm can be used to efficiently obtain $^{87}$Rb BEC despite the large detuning of the optical plug laser from the rubidium transition line at 780 nm. The atom number of the condensate is $1.2(0.4)\times10^5$ and the temperature is less than 100 nK, which matches the basic requirements for further advanced studies. We have also studied characteristic behaviors of the condensate, such as phase space density (PSD), condensate fraction and anisotropic expansion. In the near future we will use the obtained rubidium BEC to study the collective oscillations of the quantum gas, and generate an ultracold Bose–Fermi mixture using the sympathetic cooling in the same experimental setup where we have cooled fermionic atoms such as $^{6}$Li and $^{40}$K.[26,27] We use the two-MOT configuration to realize $^{87}$Rb BEC. The optical arrangement is shown in Fig. 1. Two diode lasers (DLs) are individually frequency locked on the two crossover transitions $|F=1\rangle\rightarrow|F'=1,2\rangle$ and $|F=2\rangle\rightarrow|F'=2,3\rangle$, respectively, by using the standard saturation absorption spectroscopy (SAS) method. DL2 affords cooling, probing and pushing beams, after passing through a series of acousto-optic modulators (AOMs) and being power amplified by one tapered amplifier (TA). The probing beam is resonant with the transition $|F=2\rangle\rightarrow|F'=3\rangle$ to probe the atomic population in the hyperfine state $|F=2\rangle$. DL1 provides repumping beams for MOTA and MOTB, respectively. The obtained BEC is in the spin state $|F=1,m_{F}=-1\rangle$, and the optical pumping beam pumps the atoms in the hyperfine state $|F=1\rangle$ to the upper hyperfine state $|F=2\rangle$ for atom probing.

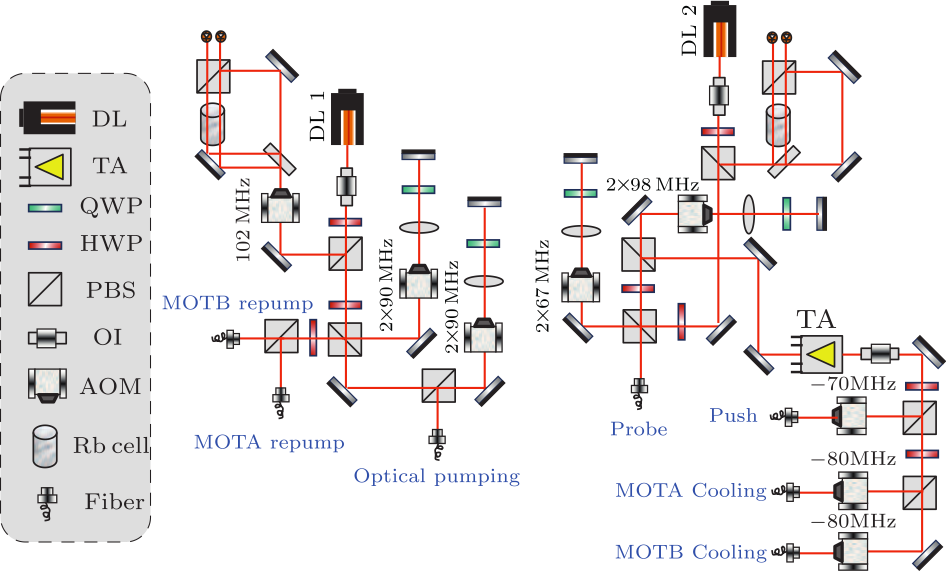

Fig. 1. (Color online) Optical arrangement for realizing BEC. DL: diode laser, TA: tapered amplifier, QWP: quarter-wave plate, HWP: half-wave plate, PBS: polarization beam splitter, OI: optical isolator, and AOM: acousto-optic modulator.

The experimental setup is sketched in Fig. 2. The main vacuum system consists of two chambers, the stainless steel chamber for MOTA and the glass chamber for MOTB, respectively. Two serial differential tubes with a diameter of 8 mm and a length of 100 mm are placed between the two MOTs, which pumps the vacuum pressure gradient with a magnitude of 2 orders. A rubidium oven (containing 4 g natural rubidium in which the abundance of $^{87}$Rb is 27.8%) is connected below the MOTA. A mechanical valve inserted between the rubidium oven and MOTA can switch off the atomic flux when the experiment stops, protecting the ion pump from being polluted by absorbing too much rubidium from the vacuum background. The cooling process in MOTA uses three orthogonal laser beams retro-reflected in each direction for convenience, while MOTB uses six beams for easily controlling the light-intensity balance. The number of cold atoms in MOTA is $4.0(2.1)\times10^8$ and the temperature is about 360(40) μK. The collected cold atoms in MOTA are pushed to MOTB with a pushing beam which is composed of a series of pulses with a period of 1.5 ms and a power of 1.0 mW. The atom number in MOTB is $8.2(2.5)\times10^8$ and the temperature is about 320(35) μK. Researchers generally use the compressed MOT and polarization gradient cooling (PGC) process to increase the atomic density and to decrease the temperature, which will favor the magnetic loading.[3,18] Here we use the decompressed MOT,[28] which can decrease the temperature and can prevent atoms expanding too large simultaneously. To find the optimal experimental parameters we have studied the loading efficiency as functions of the magnetic field gradient, detuning of the cooling light and power of the repumping light. Decreasing the magnetic field gradient results in lower temperature, which increases the magnetic loading efficiency. However, when the magnetic field is too small the atoms will expand fast, which decreases the magnetic loading efficiency. Finally we decrease the axial magnetic gradient from 18.0 G/cm to 8.4 G/cm, the power of the repumping laser from 10.0 mW to 0.3 mW, and increase the detuning of the cooling laser from $-3{\it \Gamma}$ (${\it \Gamma}=2\pi\times6.1$ MHz is the natural linewidth) to $-6{\it \Gamma}$. The temperature is reduced to 130(20) μK, which is sufficient for the magnetic loading. The atoms mainly stay in the lower hyperfine state $|F=1\rangle$ which is our target state for realizing BEC. After scanning the magnetic gradient to 336.0 G/cm with a period of 300 ms, we can load about $2.0(0.7)\times10^8$ atoms into the magnetic trap with a loading efficient of about 25%. Only the spin state $|F=1,m_{F}=-1\rangle$ can be magnetically trapped and the temperature is 210(25) μK.

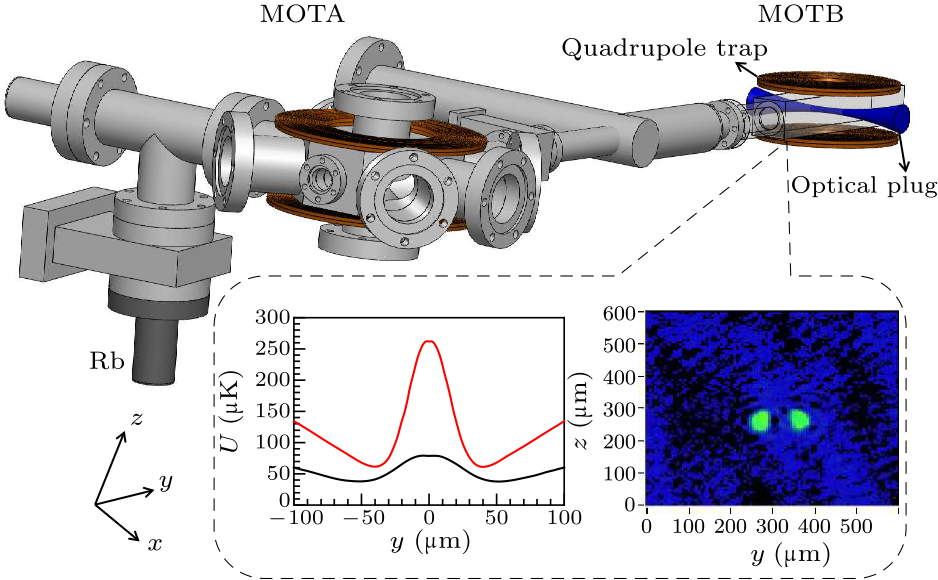

Fig. 2. (Color online) Schematics of the experimental setup. The whole system consists of two MOTs, MOTA and MOTB, respectively. A rubidium oven is connected below the MOTA where a mechanical valve can switch on or off the atomic flux. In MOTB a pair of coils provide a magnetic quadrupole trap to combine cold atoms and a blue-detuned laser beam blocks the center of the trap to suppress the atomic spin-flip effect. Inset: the left plot shows the trapping potential of the OPQ trap along the $y$-axis for two sets of experimental parameters and the right plot indicates the in situ image of two atomic clouds near the end of evaporative cooling. The red curve is for the plug beam power $P=5.0$ W, the waist of the plug beam $\omega=30$ μm and the axial magnetic gradient $\partial B/\partial z=200$ G/cm. The black curve is for $P=3.5$ W, $\omega=46$ μm and $\partial B/\partial z=90$ G/cm.

A far blue-detuned focused laser beam with a wavelength of 532 nm is plugged in the center of the magnetic trap to push away atoms from the zero point of the magnetic field, which suppresses the atomic spin-flip effect. The atomic lifetime in the trap is 71 s without the optical plug and 68 s with the plug. The similar lifetimes in these two cases indicate that the spontaneous-radiation heating due to the plug beam is negligibly small. As shown in the inset of Fig. 2, we plot the trapping potential along the $y$-axis for two sets of experimental parameters. Two potential minima obviously exist in the hybrid trap. Our calculation also indicates that the trapping frequency will increase when increasing the magnetic gradient or decreasing the waist of the plug beam, while the potential minima will be closer to the center of the magnetic trap simultaneously. Thus we should make a compromise to provide a high enough trapping depth and suppress cold atoms from flying into the spin-flip area. Increasing the power of the plug beam can both increase the trapping frequency and the distance between the potential minimum and the zero point of the magnetic quadrupole trap. In our experiment to produce BEC, the waist and the power of the plug beam are 30 μm and 5 W, respectively. Near the end of the rf evaporative cooling, the atom temperature is far below the optical barrier of the plug beam and the atomic cloud will spatially split into two parts, which is shown in the inset of Fig. 2.

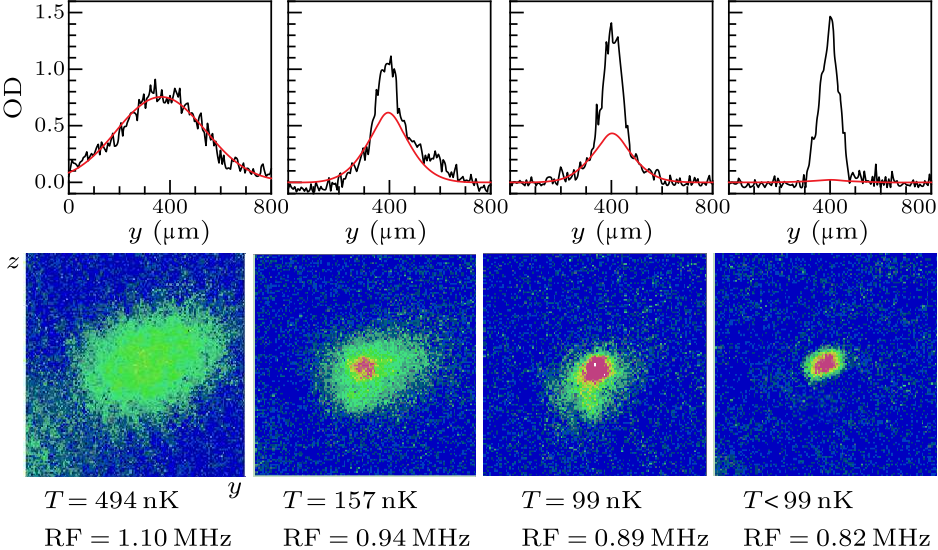

Fig. 3. (Color online) Producing BEC by using the rf evaporative cooling in the OPQ trap. The upper row shows the line optical depth (OD) along the $y$-axis after a 20 ms time of flight (TOF). The red curves are the Gaussian fitting to the two wings of the atomic density. The middle row shows the atomic density distribution in the $y$–$z$ plane. Different colors indicate the optical depth (OD) in the absorption imaging. The bottom row shows the rf frequencies and the corresponding atom temperatures.

We shine a resonant probe beam on the atomic cloud along the $x$-axis and monitor the atomic absorption images using a digital CCD. The rf evaporative cooling process is divided into four stages and in total has a period of about 24 s. Figure 3 shows our obtained results near the end of the rf cooling with a 20 ms time of flight (TOF). Two BECs in the OPQ trap will merge into one during the TOF,[3,22-25] and we could not observe the interference fringe due to the weak coherence between the two BECs in our case.[29] When the rf frequency is higher than 1.00 MHz, the main atoms are the thermal component which can be well fitted with a Gaussian distribution. The atomic density begins to deviate from the Gaussian distribution with the rf frequencies being lowered step by step, which means that the thermal and BEC components coexist in the atomic cloud. The atom temperature can be extracted from the Gaussian distributions of the thermal component in different TOFs. The minimum temperature that we can distinguish using this method is about 100 nK. When the rf frequency reaches 0.82 MHz, the pure condensate forms and the thermal component is negligibly small. We can numerically fit the density distribution of the condensate with a Thomas–Fermi function. The atom number of the pure condensate is $1.2(0.4)\times10^5$.

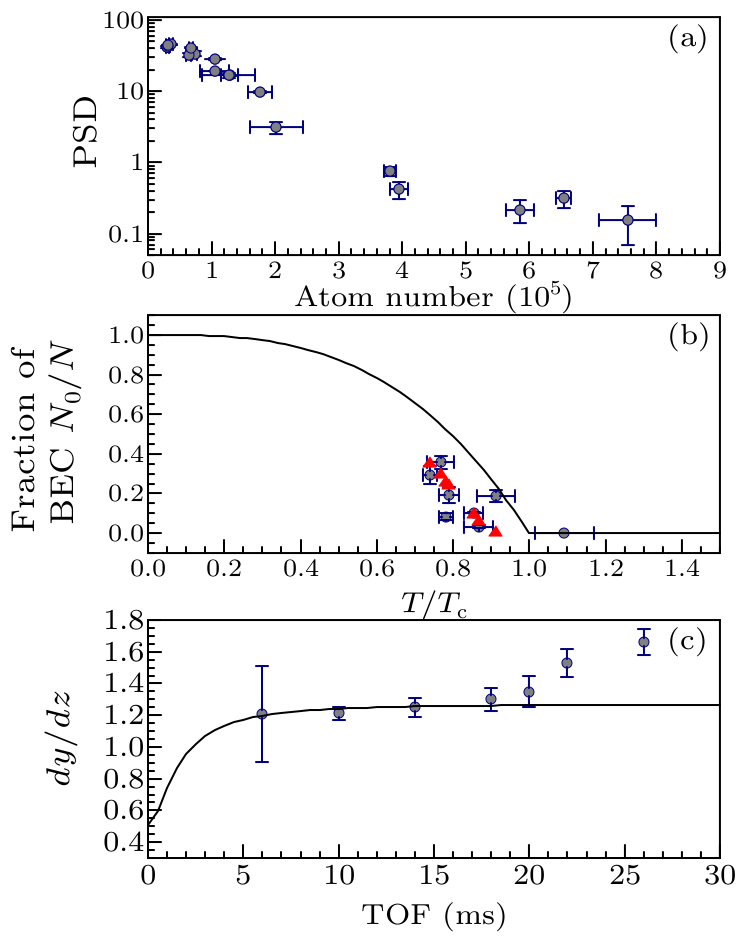

Fig. 4. (Color online) Characteristic behaviors of BEC. (a) The peak phase space density (PSD) versus the total atom number. (b) Fraction of condensate ($N_0/N$) versus the temperature normalized by the BEC threshold temperature $T_{\rm c}$. The black solid curve is for the ideal gas: $N_0/N=1-(T/T_{\rm c})^3$, the red triangles are for the numerical calculations of the interacting gases,[22,23] and the blue circles are for the experimental results. (c) Anisotropic expansion of the pure condensate in $y$- and $z$-axes in different TOFs. The black curve is for the numerical calculation and the blue circles are for the experimental results. The error bars in all the plots indicate the standard deviation (SD).

We have also studied characteristic behaviors of the condensate. In Fig. 4(a), we show that the peak phase space density (PSD) increases with decreasing the total atom number during the rf evaporative cooling. The maximum value of the PSD we can achieve is about 44, which is much larger than the BEC threshold value 2.612. Figure 4(b) shows the fraction of the condensate versus the temperature normalized by the BEC threshold temperature. The numerical calculation of the interacting gases[30,31] and the experimental results have a good agreement. Being limited by the measurement resolution, we only show experimental data with BEC fraction less than 40%. Figure 4(c) shows the anisotropic expansion in the $y$–$z$ plane in different TOFs. Using the experimental parameters about the magnetic gradient and the plug beam, we can calculate the trapping frequencies in three directions $\omega_x=2\pi\times 60$ Hz, $\omega_y=2\pi\times 233$ Hz, and $\omega_z= 2\pi\times 119$ Hz.[3,22,23] The anisotropic expansion behavior is obvious in the experimental results. The main reason for the discrepancy between the experimental results and theoretical calculation is that the two atomic clouds will merge into one during expansion, while our calculation only considers one potential minimum in the trap. The accurate analysis about the anisotropic expansion in the OPQ trap needs further consideration. We will load the rubidium BEC from the OPQ trap into an optical trap which is composed of a far red-detuned laser beam with a wavelength of 1064 nm.[22] After turning off the OPQ trap and switching on the dipole trap simultaneously, the two BECs will merge into one due to the fact that the dipole trap only has one potential minimum. In conclusion, we have experimentally produced rubidium BEC in an OPQ trap. The laser beam with a power of 5 W and a wavelength of 532 nm can be used to efficiently obtain BEC despite the large detuning of the plug beam from the rubidium transition line at 780 nm. The atom number of the condensate is $1.2(0.4)\times10^5$ and the temperature is below 100 nK. We have also studied characteristic behaviors of the condensate, such as PSD, condensate fraction and anisotropic expansion. This provides us with the starting point to study the collective oscillations of the quantum gas and to generate an ultracold Bose–Fermi mixture using the sympathetic cooling. In addition, we can produce BEC with three spin states $|m_{F}=0,\pm1\rangle$ in the hyperfine state $|F=1\rangle$ by controlling the temporal sequence of switching of the magnetic trap and optical plug. We can also produce BEC using a 767 nm plug beam with a low power of about 100 mW. These results will be published elsewhere. References Observation of Bose-Einstein Condensation in a Dilute Atomic VaporEvidence of Bose-Einstein Condensation in an Atomic Gas with Attractive InteractionsBose-Einstein Condensation in a Gas of Sodium AtomsAn optical lattice clock with accuracy and stability at the 10−18 levelAn Atomic Clock with 10-18 InstabilityThermometry via Light Shifts in Optical LatticesMany-body physics with ultracold gasesIntroduction to Ultracold Molecules: New Frontiers in Quantum and Chemical PhysicsControlling the quantum stereodynamics of ultracold bimolecular reactionsMeasurement of Universal Thermodynamic Functions for a Unitary Fermi GasExploring the thermodynamics of a universal Fermi gasObservation of Fermi Polarons in a Tunable Fermi Liquid of Ultracold AtomsCollective Oscillations of an Imbalanced Fermi Gas: Axial Compression Modes and Polaron Effective MassSpin–orbit-coupled Bose–Einstein condensatesMomentum-resolved radio-frequency spectroscopy of a spin-orbit-coupled atomic Fermi gas near a Feshbach resonance in harmonic traps

p

-Wave Interactions in Low-Dimensional Fermionic GasesManipulation of

p

-Wave Scattering of Cold Atoms in Low Dimensions Using the Magnetic Field VectorBose-Einstein condensation in a quadrupole-Ioffe-configuration trapBose-Einstein Condensation of CesiumAll-Optical Formation of an Atomic Bose-Einstein CondensateRapid production of

{}^{87}R b

Bose-Einstein condensates in a combined magnetic and optical potentialOptically plugged quadrupole trap for Bose-Einstein condensatesRubidium-87 Bose-Einstein condensate in an optically plugged quadrupole trapFast production of large

{}^{23}{Na}

Bose-Einstein condensates in an optically plugged magnetic quadrupole trapStrongly interacting isotopic Bose-Fermi mixture immersed in a Fermi seaMultiple side-band generation for two-frequency components injected into a tapered amplifierEnhanced trapping of cold

{}^{6}{Li}

using multiple-sideband cooling in a two-dimensional magneto-optical trapObservation of Interference Between Two Bose CondensatesTheory of Bose-Einstein condensation in trapped gasesCondensate fraction and critical temperature of a trapped interacting Bose gas

[1]	Anderson M H et al 1995 Science 269 198
[2]	Bradley C C et al 1995 Phys. Rev. Lett. 75 1687
[3]	Davis K B et al 1995 Phys. Rev. Lett. 75 3969
[4]	Bloom B J et al 2014 Nature 506 71
[5]	Hinkley N et al 2013 Science 341 1215
[6]	McDonald M et al 2015 Phys. Rev. Lett. 114 023001
[7]	Bloch I, Dalibard J and Zwerger W 2008 Rev. Mod. Phys. 80 885
[8]	Jin D S and Ye J 2012 Chem. Rev. 112 4801
[9]	de Miranda M H G et al 2011 Nat. Phys. 7 502
[10]	Horikoshi M et al 2010 Science 327 442
[11]	Nascimbène S et al 2010 Nature 463 1057
[12]	Schirotzek A et al 2009 Phys. Rev. Lett. 102 230402
[13]	Nascimbène S et al 2009 Phys. Rev. Lett. 103 170402
[14]	Lin Y J, Jiménez-García K and Spielman I B 2011 Nature 471 83
[15]	Peng S G et al 2012 Phys. Rev. A 86 063610
[16]	Günter K et al 2005 Phys. Rev. Lett. 95 230401
[17]	Peng S G, Tan S N and Jiang K J 2014 Phys. Rev. Lett. 112 250401
[18]	Esslinger T, Bloch I and Hänsch T W 1998 Phys. Rev. A 58 R2664
[19]	Weber T 2002 Science 299 232
[20]	Barrett M D, Sauer J A and Chapman M S 2001 Phys. Rev. Lett. 87 010404
[21]	Lin Y J et al 2009 Phys. Rev. A 79 063631
[22]	Naik D S and Raman C 2005 Phys. Rev. A 71 033617
[23]	Dubessy R et al 2012 Phys. Rev. A 85 013643
[24]	Heo M S, Choi J Y and Shin Y I 2011 Phys. Rev. A 83 013622
[25]	Wu C H et al 2011 Phys. Rev. A 84 011601(R)
[26]	Luo H et al 2013 Opt. Lett. 38 1161
[27]	Li K et al 2015 Phys. Rev. A 92 013419
[28]	Wu C H 2013 PhD Dissertation (Massachusetts: Massachusetts Institute of Technology)
[29]	Andrews M R et al 1997 Science 275 637
[30]	Dalfovo F et al 1999 Rev. Mod. Phys. 71 463
[31]	Giorgini S, Pitaevskii L P and Stringari S 1996 Phys. Rev. A 54 R4633
